DHB40 Drum Asphalt Mixing plant


    Productivity (standard conditions):40 t/h


    Oil Consumption (standard conditions): 5.5-7kg/t


    Operation mode: manual control


    The Figure Dimension:(length×width×height): 30×16×6m

Share with:
  • Description
  • Parameter
  • Drawing
  • Inquiry

DHB40 Drum Asphalt Mixing plant

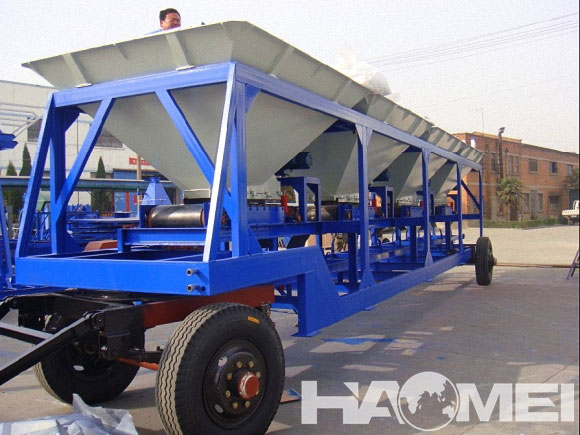

1. Cold aggregate supply system(mobile) Components:Four aggregate belt feeders, a set of aggregate belt conveyor;

2、Middle filter Type: oblique flow automatically;

3、Titled belt feeding conveyor

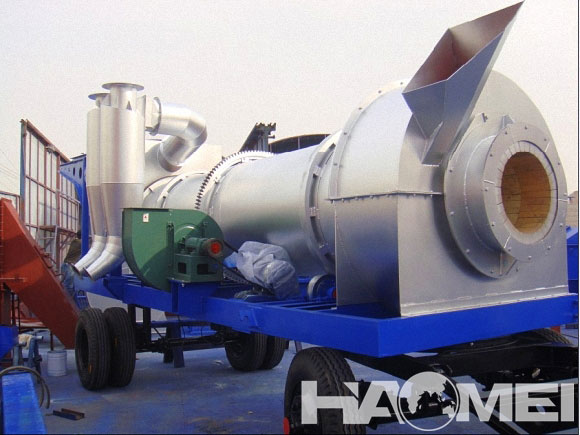

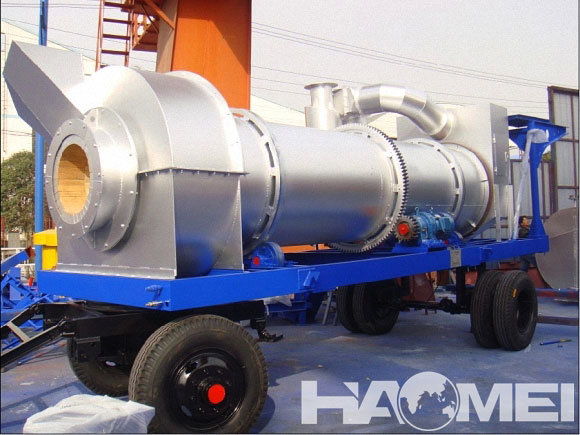

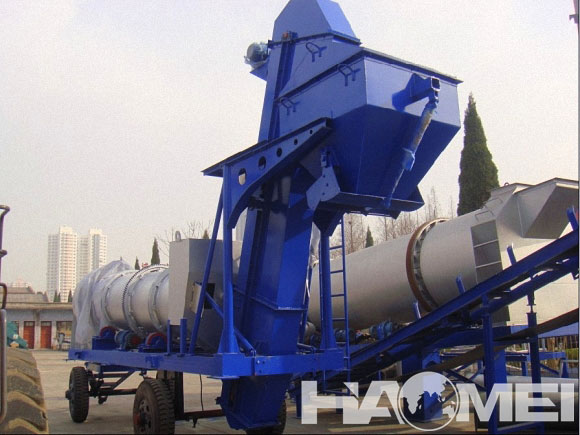

4、Drying drum assembly Components 1). Dryer drum(mobile) 2). Elevator 3). Dust catcher 4). Mixture storage silo

5、Oil burning system Components: A set of main oil burner(light oil), a suit of oil supply pipes; the client equip the asphalt tank by himself.

6、Asphalt supply system Components One asphalt tank, one set of asphalt pump and one set of asphalt pipelines;

7、Electric control system Components: Control room, electric operation platform and cables from control room to the plant.

Specification Unit Value

Productivity (under standard conditions)

t/h 40

Oil consumption (under standard conditions)



Operation mode

  manual control

Aggregate Bin

Quantity 3

Figure dimension


(length×width ×height): 30×16×6

Total installed power

kw 57.15
