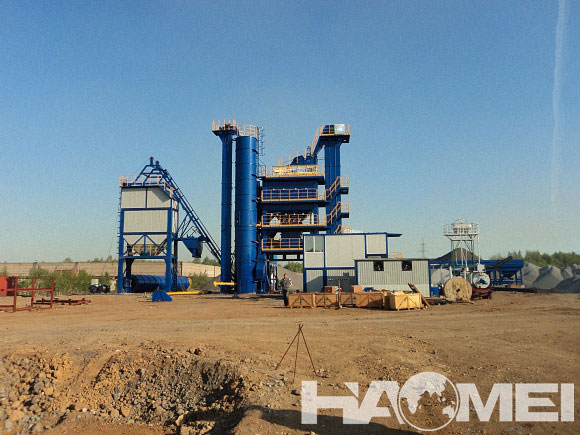

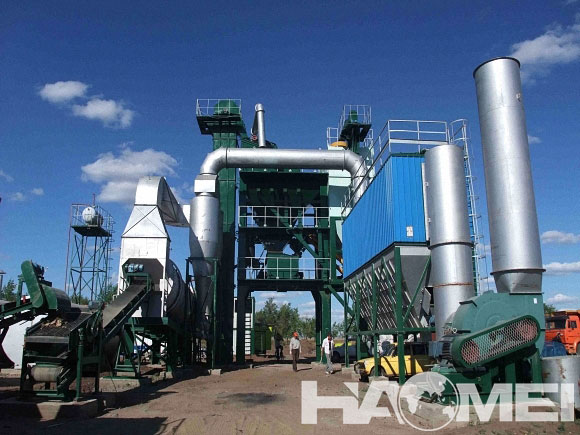

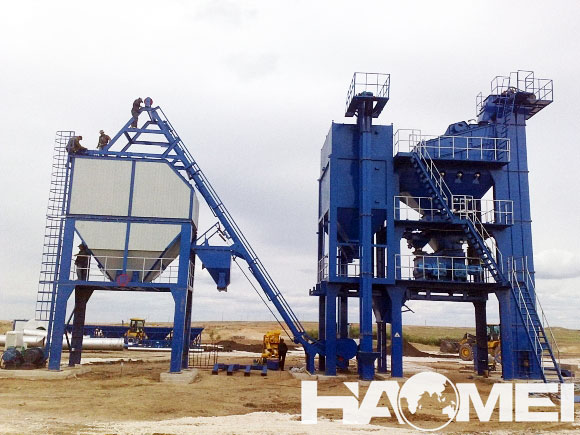

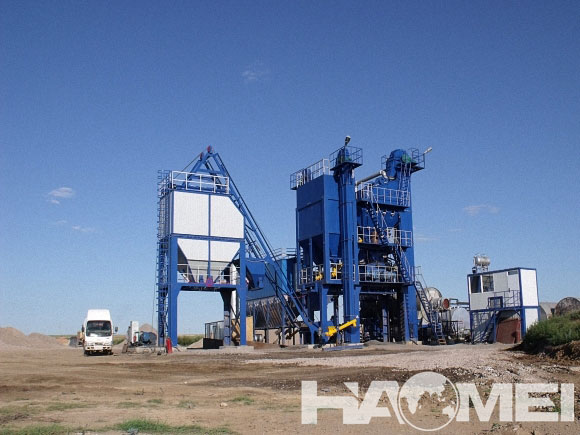

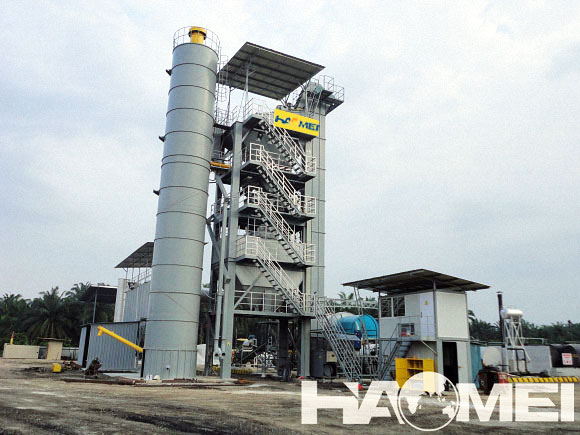

LB2000 Asphalt Mixing Plant

Production capability (standard conditions): 175t/h
Mixer rated mix capacity: 2200kg/batch
Oil consumption (standard conditions):≤6.5kg/t
Operation mode: manual, semi-automatic,automatic

Share with:

Description
Parameter
Drawing
Inquiry

Components of LB2000 Asphalt Mixing Plant

1.Cold aggregate supply system Consists of five aggregate hoppers and five belt feeders, Aggregate belt conveyor, Tilted belt feeding conveyor, Middle filter

2. Drying drum features four-wheel friction drive, universal connecting, transmission is smooth, uniform force. Drying drum outer set 50mm thickness insulation layer, reduce heat loss.

3. Oil burning system Consists of A set of oil burner (light oil); A set of oil supply tube; Clients should prepare the light oil tank.

4. Hot aggregate elevator features double-row plate chain guide sliding type elevating, friction drive, special structure for feed inlet and discharge outlet

5. Bag dust removal system consists of One set of gravity dust collector, one set of bag dust filter (impulse reverse jet), Screw conveyor 3 sets, Bag dust filter’s bottom dust screw conveyor

6. Mixing tower including Vibrating screen, Hot aggregate bins, Weighing hopper, Mixing device, Asphalt spraying system

7. Filler supply system Consists of Filler elevator, filler temporary storage silo, screw conveyer.

8. Air system Consists of Air compressor one set, compressor room, air cylinder and electromagnetic valve one set; air pipes one set.

9. Asphalt supply system Consists of 0.5million kcal heat conducting oil boiler; 40m3 asphalt tank 3 sets; 2m3 asphalt unloading tank 1 set;

10. Electrical control system

Specification	Unit	Value
Production capability (standard conditions)	t/h	175
Mixer rated mix capacity	kg/batch	2200
Oil consumption (standard conditions)	kg/t	≤6.5
Operation mode	/	manual, semi-automatic,automatic
The hot mixture discharge temperature	℃(common asphalt)	130～160
The outline dimension	m	LWH)37m32m15m;
Total installed power	kw	462.27
