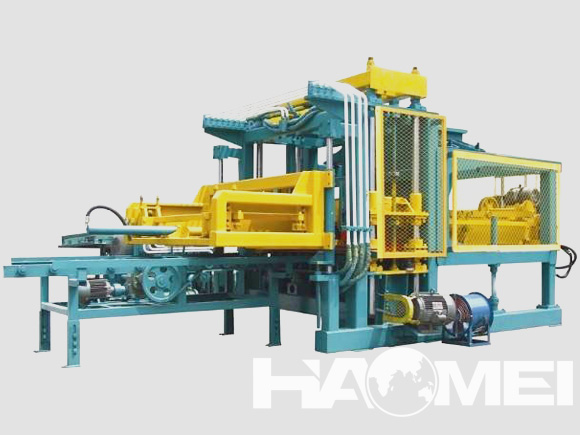

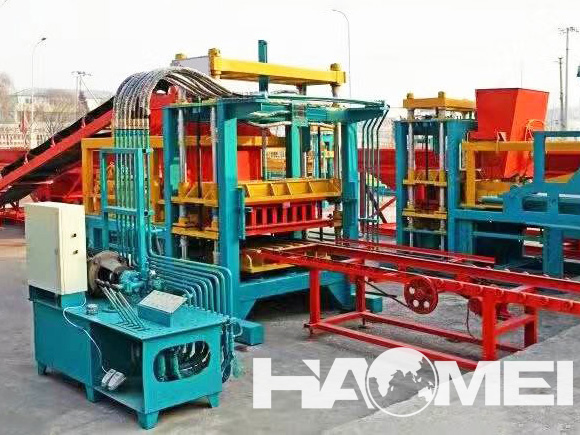

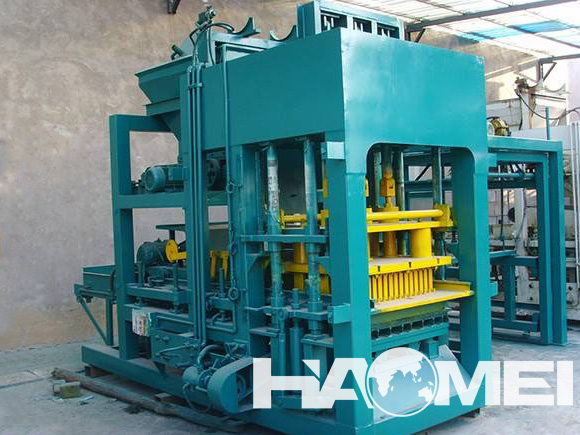

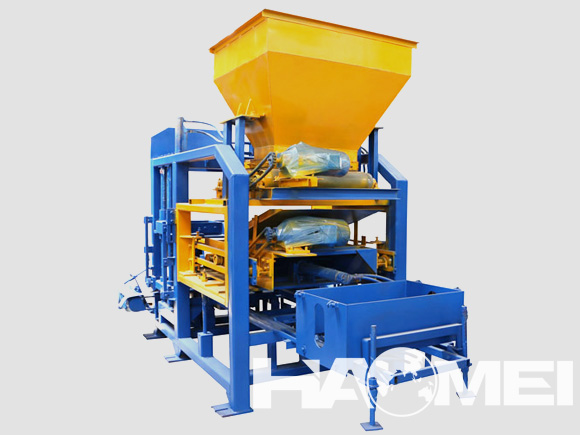

QT10-15 Brick Moulding Machine

Block &brick moulding machine has hydraulic operated type and automatic control system.Haomei block molding machine with automatic traveling system & single vibrator to mould to produce various types of solid, cavity & hollow cement concrete blocks.Haomei has more than 25 years of production, research, development and sales, and our brick making machines have been exported to more than 30 countries and areas, such as South Africa, Vietnam, Philippines, Pakistan, Russia, Kenya, Malaysia…. The high-quality product and considerate after-sales service have won us a good reputation.

1. Specificaton of Block Moulding Machine

Main Technical Parameters



Modle	Molding Cycle(s)	Pallet Size(mm)	Installed Capacity(kw)	Weight(t)	Machine Dimensions(mm)	The Highest Frequency(r/min)
QT10-15	15-20	1150*840*40	36.55	11	8200*2000*2950	4800-5100



Theoretical yield table



Product Name	Product Specifications(mm)	Number Per Plate(Block)	Block/Hour	Blok/8 Hours
Block	390*190*190	10	2400-1800	19200-14400
Brick	240*115*90	27	5760-4320	46086-34560
Standard Bricks	240*115*53	54	12240-9180	97920-73440

Note: The above theory of output data, depending on the operating proficiency may be biased.

2. Features of Haomei block moulding machine

1. Reliability. The machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, fault diagnosis and parameters setting, ensure the best operation effect of the fully automatic paver brick making machine.
3. Unique design. The special loading and supply unit, the multi-line whipping forks are fixed at inside of material feed box. The whipping forks works and feed the material to mold box forcedly during the material feed box moves to up of mold box, the feed will smoothly and equalization, than for the product, the intensity is insured and the weight is equal.
4. Design with super strong vibrating activated force, The computer controls the pressure and flowing rate of hydraulic system; vertical synchrony-vibration; frequency conversion; brake, final the product reaches the high density and high strength within short time.
5. Multi use; strong performance; the many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.

 1. Design the program of block moulding machine for sale for you.
If you have little experience in building brick making factory. We can help them to do market research and assist them to choose the most proper machine.
2. Provide related drawing of program.
Haomei are professional and have rich experience in manufacturing brick moulding machines, so we have clients all over the world. So we have many cases for your reference if you do not know how to begin your blocks business.
3. On site installation, debugging, free training and maintenance.
We provide engineer to your local place, help you install the machine, demonstrate the operation, and training your workers. Continuous guidance during installation.
4. Timely help when needed.
Commonly, we will provide considerate service for free(excluding the commuting expenses). As long as the clients need help, we will give timely technology support by phone or video. If it is necessary, our engineers will fly to the local construction site and solve problems for the clients.
