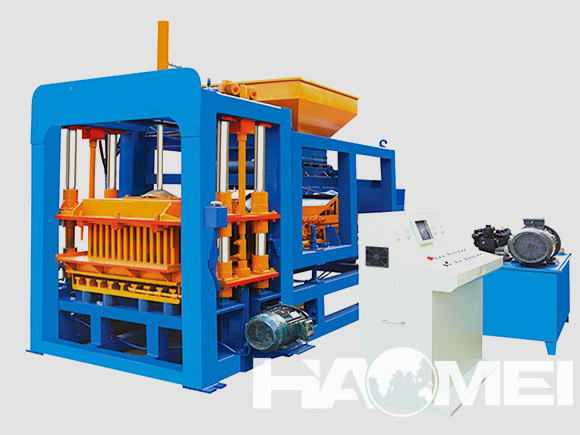

QT12-15 Cement Brick Making Machine

Model: QT12-15
Molding cycle: 15-20S
Capacity: 2160Pcs/Hr
Power: 46kw

Share with:

Product Details
Specification
Detailed service
Inquiry

Haomei supply cement brick making machine and cement block machine with new technology support, vibrational force can meet the production of high-strength blocks and bricks.QT12 -15 brick making machine is an efficient hydraulic block machine, and comes equipped with a powerful vibrator, resulting in quick cycles. This machine comes equipped with one standard mold. This machine can produce four 12 blocks per cycle, but because of its quickness it performs about 800 cycles per day.

1. Specificaton of Cement Brick Making Machine

Main Technical Parameters

Modle	Molding Cycle(s)	Pallet Size(mm)	Installed Capacity(kw)	Weight(t)	Machine Dimensions(mm)	The Highest Frequency(r/min)
QT12-15	15-20	131084040	46	13	820023003000	4800-5100

Theoretical yield table

Product Name	Product Specifications(mm)	Number Per Plate(Block)	Block/Hour	Blok/8 Hours
Block	390190190	12	2160	17280
Brick	24011590	30	7200	57600
Standard Bricks	24011553	60	14400	115200

Note: The above theory of output data, depending on the operating proficiency may be biased.

2. Features of Haomei Cement block making machine

1. Reliability. The machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, fault diagnosis and parameters setting, ensure the best operation effect of the fully automatic brick making machine.
3. Unique design. The special loading and supply unit, the multi-line whipping forks are fixed at inside of material feed box. The whipping forks works and feed the material to mold box forcedly during the material feed box moves to up of mold box, the feed will smoothly and equalization, than for the product, the intensity is insured and the weight is equal.
4. Design with super strong vibrating activated force, The computer controls the pressure and flowing rate of hydraulic system; vertical synchrony-vibration; frequency conversion; brake, final the product reaches the high density and high strength within short time.
5. Multi use; strong performance; the many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.

Brick/Block Size	9" x 4" x3",10" x 5" x3",8" x 4" x4"
Brick Raw Material	Cement, Fly Ash, Sand, Stone Dust, Gysum, Lime Sludge,etc
Usage/Application	For Making,Fly ash bricks,Concrete Blocks,Paver Blocks,Solid Blocks, Cement Blocks, Hollow Blocks
No. Of Bricks Per Stroke	4, 6, 8, 10,12, 14, 16 Pcs
Pallets Size	22" x 23" x 19mm (Thickness)
Automation Grade	Semi or Fully Automatic
Brick/Block Type	Solid, Interlock, Hollow, Paver
Method	Hydraulic Pressure
System	PLC Controlled
Capacity(Blocks/Bricks )	1000-4000 pcs per hour
Capacity per 8 Hours	6000pcs to 40000 pcs
Voltage	440 Volt
Space Required	30 ft ( L) x 25 ft (W) x 16 Ft (H)
Total Power Required	22 HP to 50 HP
Material	Mild Steel
Accessories	Main Press Machine with Vibrator System, Rollers Pan Mixture, Belt Conveyor, Bearing Conveyor, Electronic Control Panel, Hydraulic Power Pack, Material Trolley, Hydraulic Pallets trolley.
Treatment Time of Bricks/Blocks	Minimum of 7- 8 Days

1. Design the program of cement block machine for sale for you.
If you have little experience in building brick making factory. We can help them to do market research and assist them to choose the most proper machine.
2. Provide related drawing of program.
Haomei are professional and have rich experience in manufacturing cement brick making machines, so we have clients all over the world. So we have many cases for your reference if you do not know how to begin your blocks business.
3. On site installation, debugging, free training and maintenance.
We provide engineer to your local place, help you install the machine, demonstrate the operation, and training your workers. Continuous guidance during installation.
4. Timely help when needed.
Commonly, we will provide considerate service for free(excluding the commuting expenses). As long as the clients need help, we will give timely technology support by phone or video. If it is necessary, our engineers will fly to the local construction site and solve problems for the clients.
