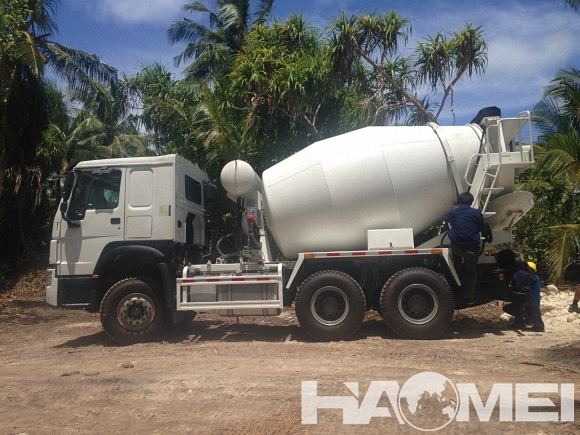

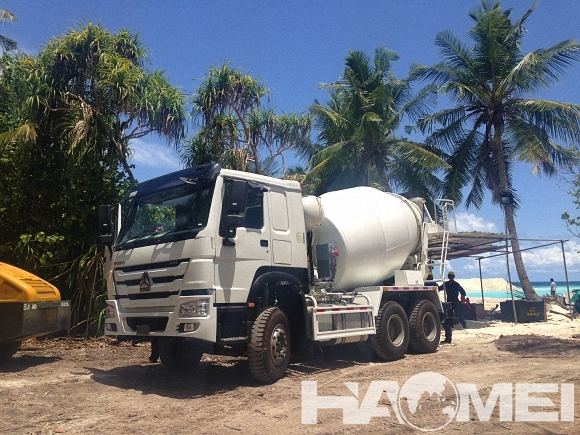

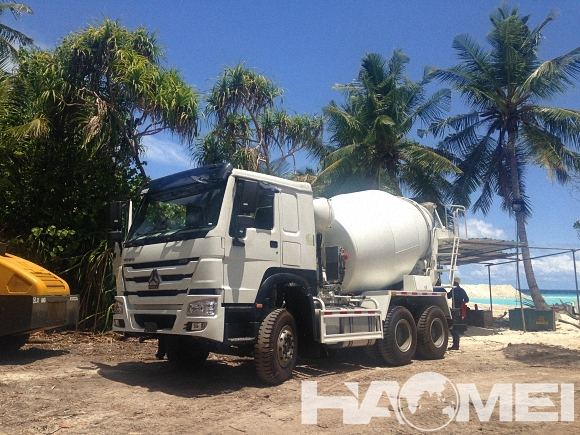

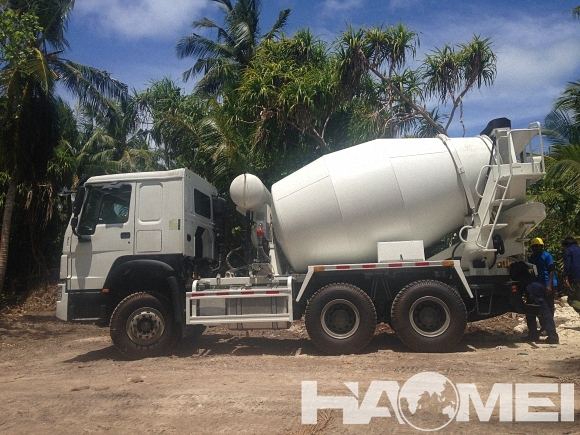

HM6-D Concrete Mixer Truck

Mixing Capacity: 6m3
Tank Volume: 9.96m3
Feeding Speed: ≥3m³/min
Discharging Speed: ≥1.5m³/min

Share with:

Description
Parameter
Drawing
Inquiry

1. The Description of HM6-D Concrete Truck Mixer:

1. HAOMEI serial HM6-D Concrete mixer truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured.

2. Effectively delay concrete coagulations, avoid concrete stratification and education, and ensures construction quality and speed.

3. Wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed concrete works.

4. Including many models such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any tailor-made-for-mixer-truck special chassis both at home and abroad.

2. The Features of HM6-D Concrete Truck Mixer:

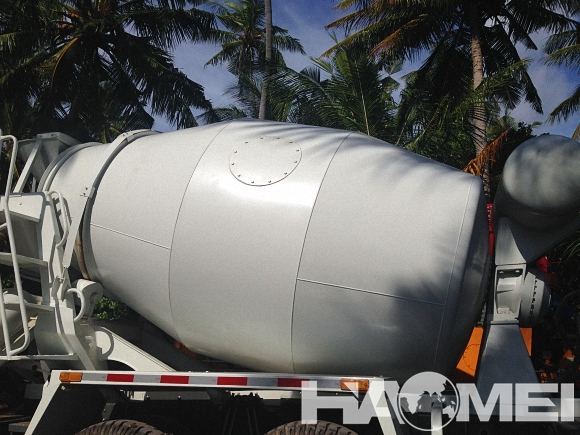

1. High-intensity drum material, featuring better wear-resistance and long service life;

2. Optimized mixing blades, low material residue;

3. High-quality parts, reliable running;

4. Excellent performance and convenient operation;

5. Imported original hydraulic system.

Specification	Unit	Value
Mixing Capacity	m3	6
Tank Volume	m3	9.96
Feeding Speed	m³/min	≥3
Discharging Speed	m³/min	≥1.5
Residual Ratio of Discharging	%	≤0.5
Water Supply System	/	Air pressure
Water Tank Volume	L	260
Overall Dimension	mm	845024963835
Chassis Model	/	Steyr
Clutch	φ	φ430 Monolithic dry type
Min Ground Clearance	mm	297
Max Speed	km/h	75
Engine Max Output Power	kw	247
Emission Standard	mm	Euro Ⅲ
Rated Load	kg	12600
Overall Weight	kg	25000
Wheelbase	mm	3225+1350
