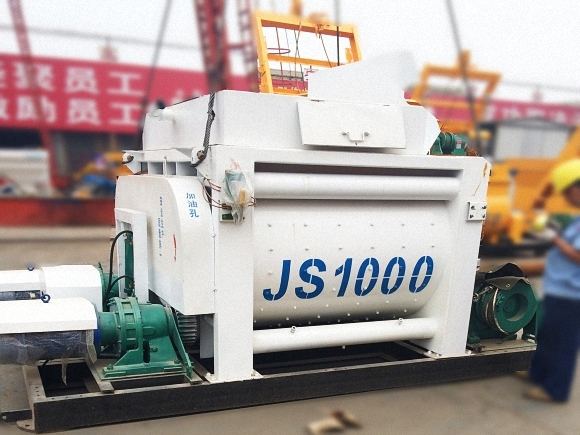

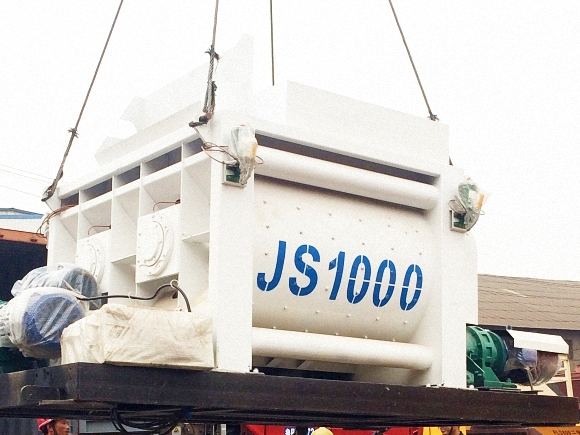

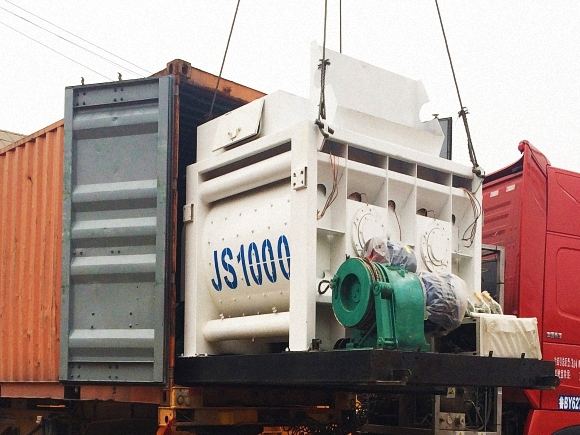

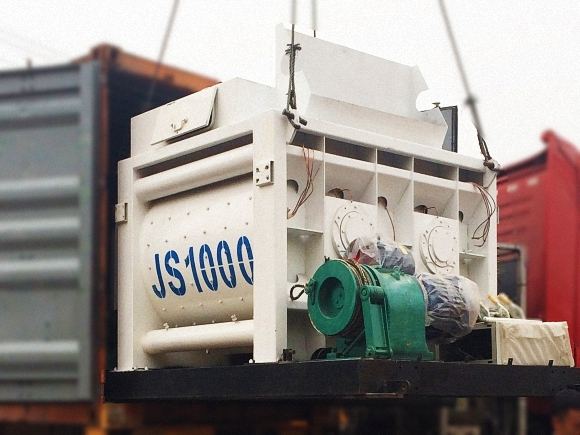

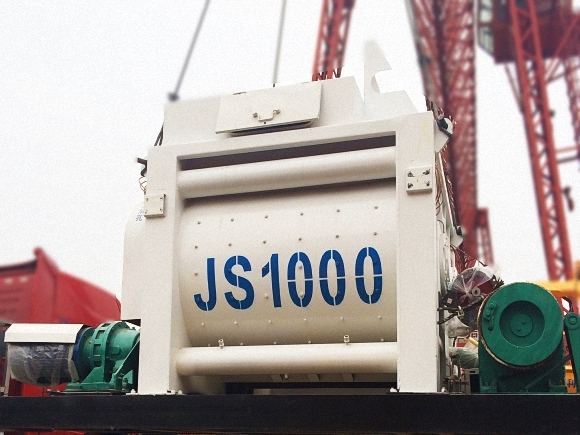

JS1000 Concrete Mixer


    Mixer Capacity: 1.0m3


    Discharging Volume: 1000L


    Charging Volume: 1600L


    Mixer Motor Power: 37kw

Share with:
  • Description
  • Parameter
  • Drawing
  • Inquiry

Descriptions of JS1000 Concrete Mixer:

1. JS1000 compulsory twin shaft concrete mixer system, with two stirring shaft while stirring, also known as a party mixers, each discharging a square tank, feed capacity of 1.6 square, the theoretical maximum hourly production rate of 60m3 / h multiple as HZS50 small concrete batching plant or mixing console using HZS60 self loading concrete batching plant.

2. This ready mixed concrete mixer has a high degree of automation, high efficiency, low energy consumption, low noise, easy operation, discharge speed, linings and leaf long life and easy maintenance.

3. JS1000 compulsory concrete mixer can be used alone, but also with different HPD series batching machine model consisting of simple concrete mixing plant, can be used to dry hard, plastic lightweight aggregate concrete and all kinds of mortar, mortar mixing is suitable for a variety of construction and medium and small precast plant.

4. JS1000 twin shaft compulsory concrete mixer by feeding, mixing, the composition of the discharge, water, electric, cover, chassis, legs and other parts. Mixing system is directly connected by a planetary reducer cycloid machine, open gears, mixing tank, stirring device, oil installations and other components

Specification Unit Value
Discharging Volume  L  1000
Charging Volume  L  1600

 Mixing Capacity

 m3  1

 Aggregate Size

 mm  60/80

 Working Circle

 sec  60

 Mixer Motor Power

 kw  37
Lifting Motor Power kw 11
Pump Motor Power kw 3
