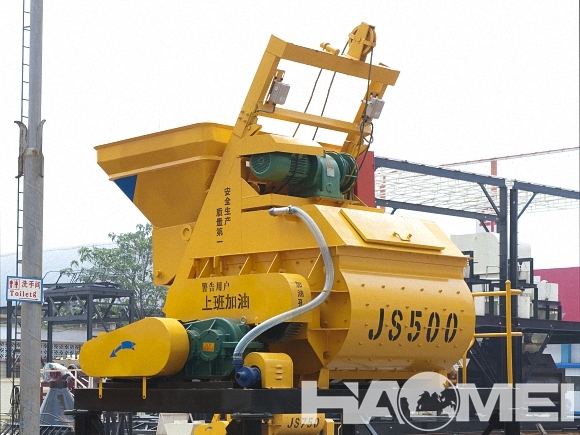

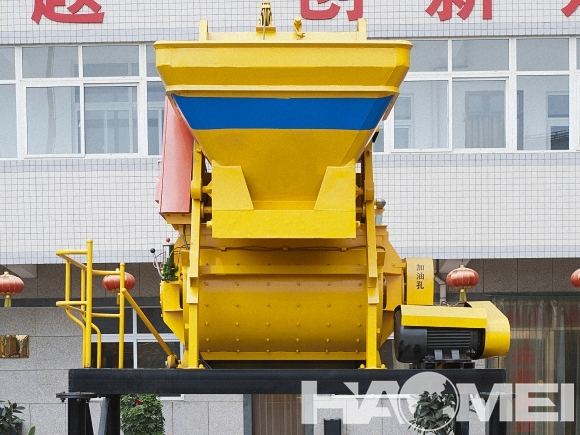

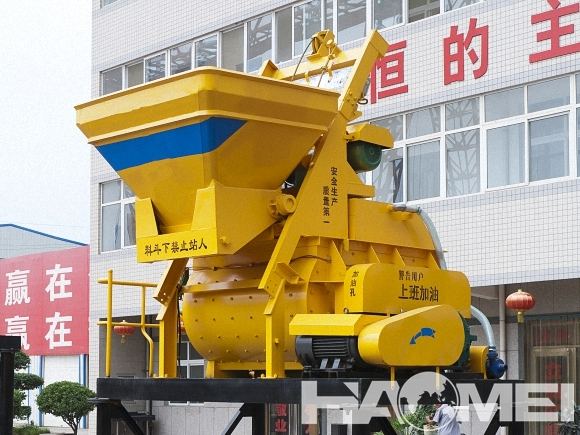

JS500 Concrete Mixer


    Mixer Capacity: 0.5m3


    Discharging Volume: 500L


    Charging Volume: 800L


    Mixer Motor Power: 18.5kw

Share with:
  • Description
  • Parameter
  • Drawing
  • Inquiry

1. Description of JS500 Concrete Mixer:

JS500 Concrete Mixer is double shaft compulsory concrete mixer. More advantages of this concrete equipment:

1. To be operated independently as single

2. To be combined with PLD series compounding machine to form simple concrete batching plant, it can provide associated main machine for batching plant, and is applicable to large, medium and small scale prefabricated components plants and road, bridge, irrigation works, dock and civil building project

3. Mix hard concrete, quaking concrete, fluidity concrete, light weight aggregate concrete.

4. This series of machine has a rational design structure, with new arrangement, and is easy to be repaired and used.

5. The height of leg like supports are designed as: JS500 is 1500mm, JS750 is 1600mm, JS1000 and JS1500A are 4600mm, among which (JS 1500B, JS2000 and JS3000 use Italian SICOMA technology).

6. The customer can use the mixer combined with tip lorry, dump truck, and mixer truck.

2. Features of JS500 Concrete Mixer:

1. Excellent mixing performance--Twin shaft compulsory concrete mixer

2. Wear-resisting lining board--the blades and liner of mixing drum is made of the high quality steel.

3. Shaft-end sealing technology--double shaft-end seal to guarantee that there is no leakage.

4. Multiple protection devices

5. Heavy-duty design, easy to operate and low noise

Specification Unit Value
Discharging Volume  L 500
Charging Volume  L  750

 Mixing Capacity

 m3  0.5

 Aggregate Size

 mm  60/80

 Working Circle

 sec  60

 Mixer Motor Power

 kw  18.5

Lifting Motor Power

kw 5.5

Pump Motor Power

kw 0.75
