JS750 Concrete Mixer

Mixer Capacity: 0.75m3
Discharging Volume: 750L
Charging Volume: 1000L
Mixer Motor Power: 30kw

Share with:

Description
Parameter
Drawing
Inquiry

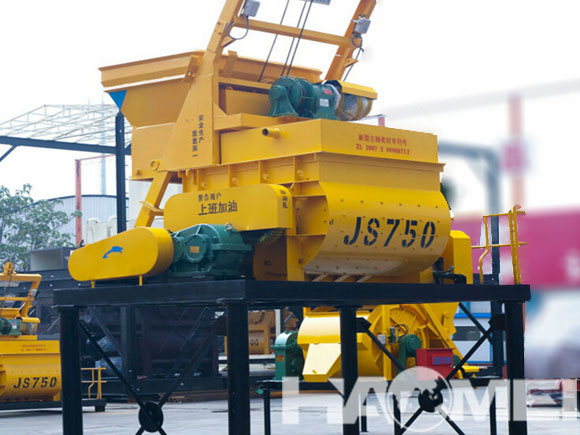

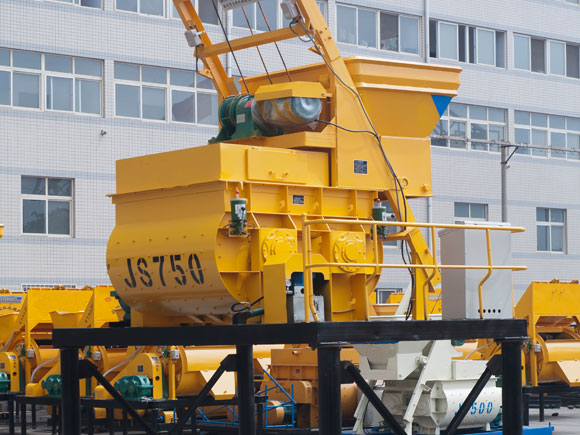

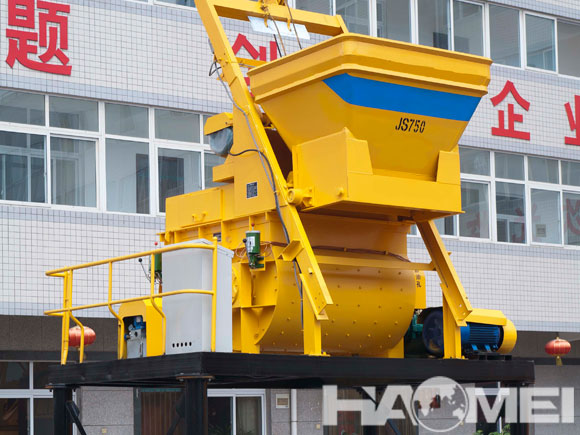

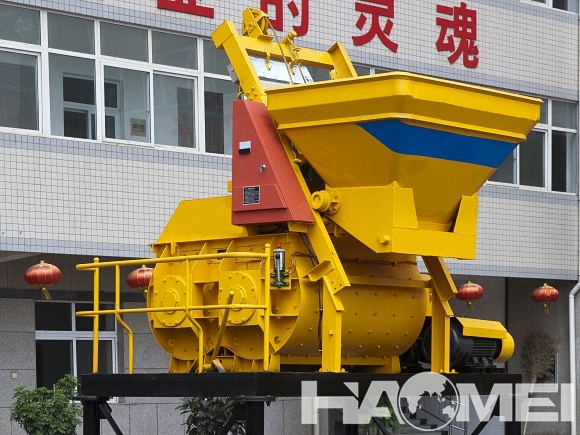

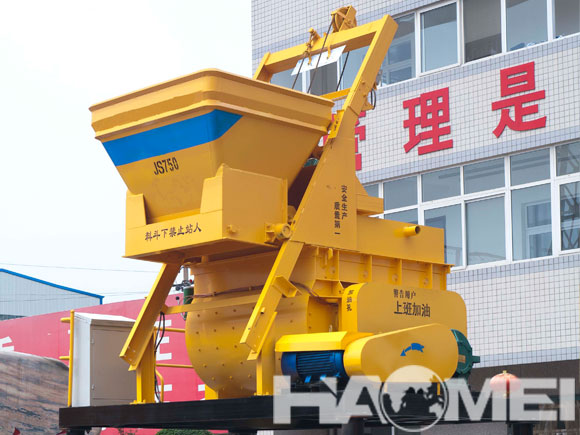

1. Description of JS750 Twin Shaft Concrete Mixer:

1. JS750 compulsory concrete mixer is an engineering compulsory concrete mixer. JS750 concrete mixer discharge 0.75 each party, also known as 0.75 square concrete mixer, which often used as a host of HZS35 concrete batching plant.

2. JS750 concrete mixer theory productivity 35m3 / h, duty cycle time is 60s, with a stirring force, small power consumption, strong power, built-in vortex mixer to prevent the material unity knot positions, etc., including the compulsory mixer planetary mixer, vortex mixer, agitator shaft, nesting agencies, discharge port , stand mixer and chassis components.

3. JS750 twin shaft compulsory concrete mixer is suitable for all types of large, medium and small prefabricated factories and roads, bridges, water conservancy, port and other industrial and civil engineering, which can mix dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and mortar variety, which is a high-efficiency model and widely used.

Specification	Unit	Value
Discharging Volume	L	750
Charging Volume	L	1200
Mixing Capacity	m3	0.75
Aggregate Size	mm	60/80
Working Circle	sec	60
Mixer Motor Power	kw	30
Weight	kg	5000
Dimensions	mm	3550x2250x2800
