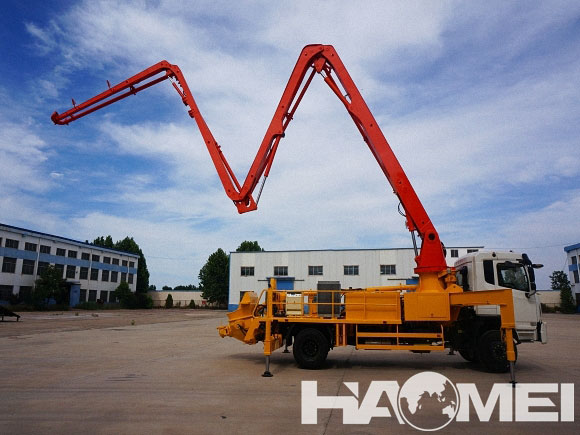

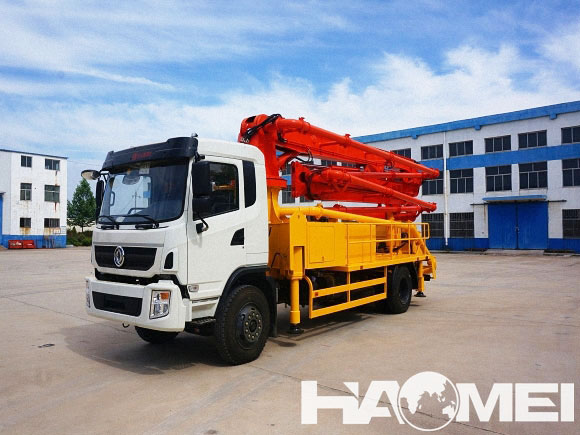

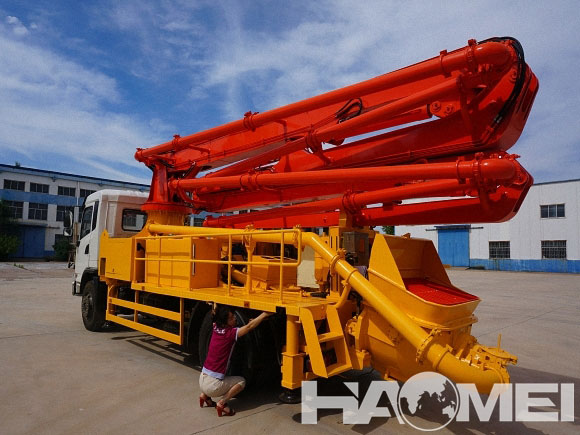

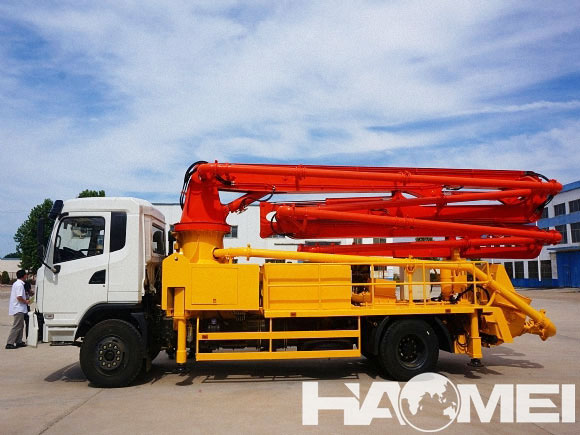

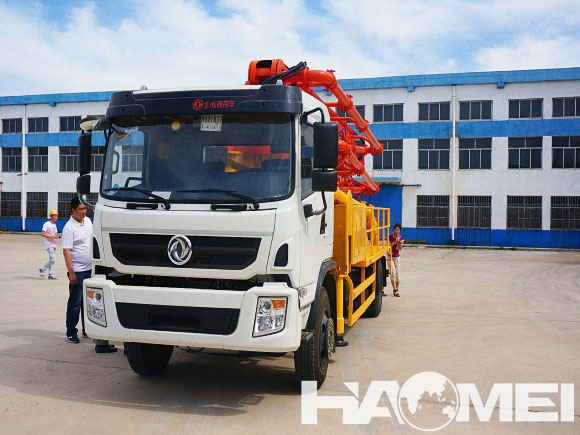

HDT5401THB-4852 Concrete Pump Truck

Output in theory(m3/h): 125
Index of the pump carry capacity(Mpa.m3/h): 586
Theoretic pumping pressure(Mpa): 8.5
Bucket volume(L): 700

Share with:

Description
Parameter
Drawing
Inquiry

The Features of HDT5401THB-48/52 Concrete Pump:

1.Original imported GERMANY HBC wireless remote-control device with light weight and handy carrying can enable aggregate carrying pipe to take position accurately simply by manual control.

2.Pumping capacity can be infinitely variably controlled. pump truck expanding speed can be infinitely controlled through quicken-slow device.

3.Boom slewing speed can be infinitely controlled .

4.it’s equipped with emergency brake device and diesel engine auto-control-speed device to lower oil-consumption.original imported GERMANY STEIBEL transfer case and REXROTH pump group;

5.Original imported slewing reducer and slewing motor;original imported GERMANY HAWE proportional multi-way valve;original imported GERMANY REXROTH valve and valve from ITALY oil-control companies;

6.Electric control box adopting totally imported parts while control modules like PLC are all products from GERMANY SIEMENS.

Specification	Unit	Value
Output in theory	m3/h	125
Index of the pump carry capacity	Mpa.m3/h	586
Theoretic pumping pressure	Mpa	8.5
Bucket volume	L	700
Height of top surface of bucket	mm	140
Model of distribution valve	S	Valve
Max. operation radius	m	43.7 / 47.8
Max. operation height	m	47.7 / 51.8
Max. operation depth	m	34.3 / 39.8
Diameter of delivery pipe	mm	125
Length of hose pipe	m	3
Rotary range of boom		365°
Quantity of boom		5
Rotary angle of each boom	(°)	91/180/180/180/270 90/180/180/180/270
Wire line control distance	m	33
Romote control distance	m	200
Max. speed	km/h	85/ 80
Min. turn radius	mm	12000 / 12500
Approach angle(°)		16
Departure angle(°)		11
Chassis model		HOWO ZZ5437S4667C
Wheel base between the first & the second axle	mm	1800
Wheel base between the second & the third axle	mm	4600 / 5000
Front tread	mm	1350
Rear tread	mm	2022
Max. engine output power	kw	275(2200r/min)
Max. engine output torque	n.m	1500 /(1100~1600 r/min)
Max, gradient ability(%)		37
Fuel consumption	L/100km	40
out dimension(L×W×H)	mm	13300×2500×4000 13990×2500×4000
Total weight	kg	40000/42000
