YHZS60 Mobile Concrete Batching Plant


    Productivity: 60m3/h


    Overall Power: About 85kw


    Discharge Height: 3.8m


    Power Source: 380/50 (V/ HZ)

Share with:
  • Description
  • Parameter

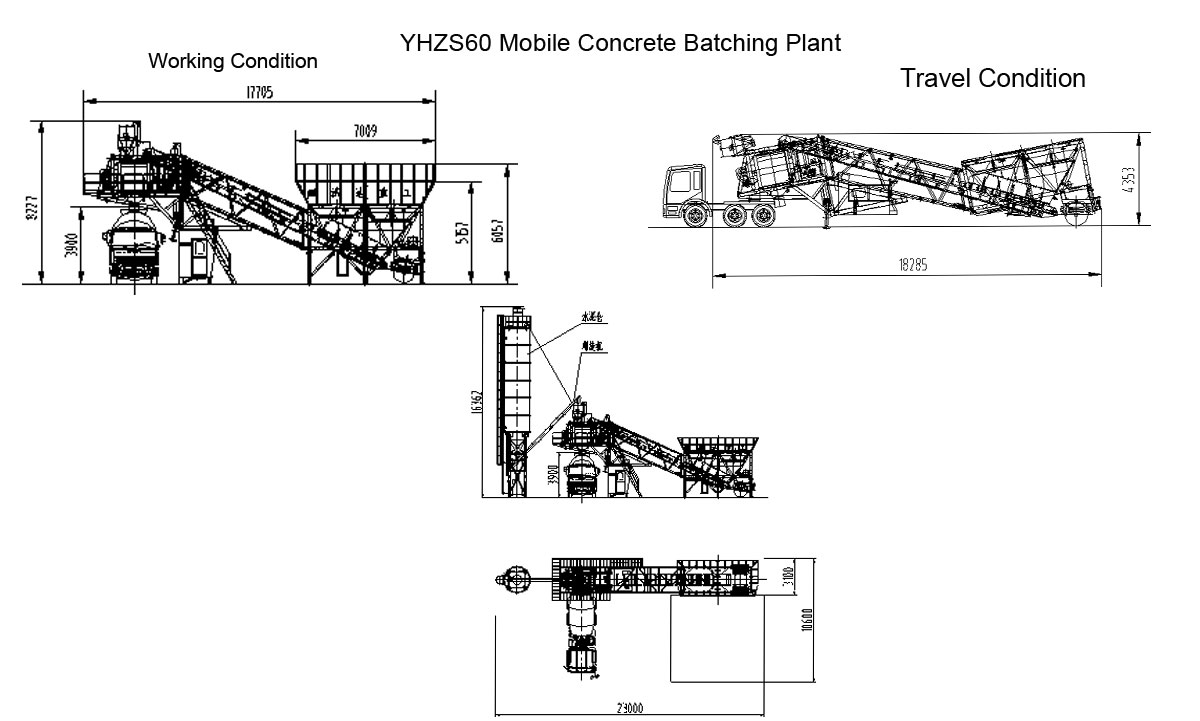

  • Drawing
  • Inquiry

YHZS60 Mobile Concrete Batching Plant:

1. YHZS60 mobile concrete batching plant is easy to be removed from one site to another with the help of chassis with wheels.

2. With belt type conveyor system, the conveying speed will be greatly improved and improve the efficiency of yhzs60 mobile concrete batching plant

3. The Adoption of JS1000 twin shaft compulsory concrete mixer is not only to improve the productivity, also save the duration.

4. Main weighing system imported from abroad, high accuracy and efficiency is becoming the great advantages of YHZS60 mobile concrete batching plant.

Specification Unit Value
Productivity m3/h 60

Weighing scale Concrete

kg 3000

Weighing scale Cement

kg 720

Weighing Scale Water

kg 360

Weighing Scale Liquid Additive

kg 36

Overall Power

kw About 85

Power Source



Discharge Height

m 3.8

Overall Weight

t 21(cement silo not included)

Trail speed



Specification(LxWxH) During work



During transportation



yhzs60 mobile concrete batching plant
