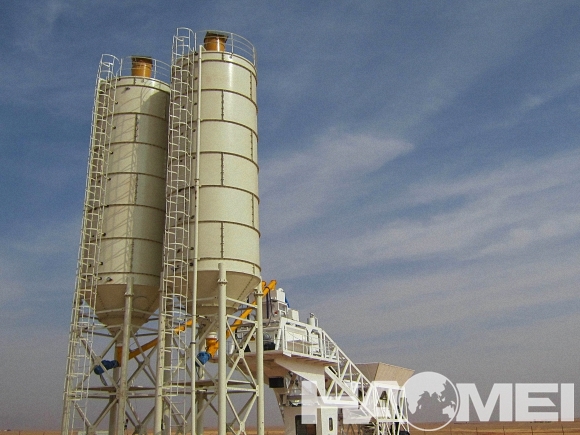

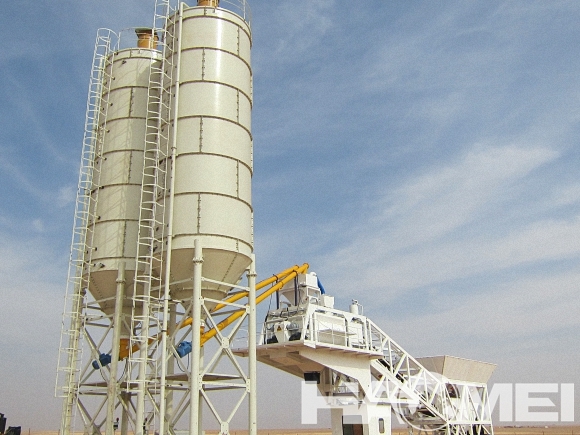

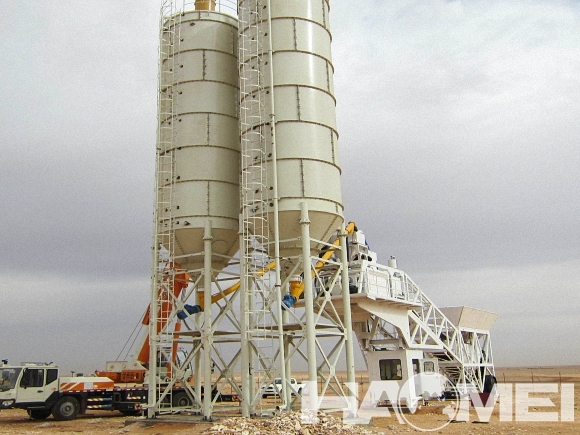

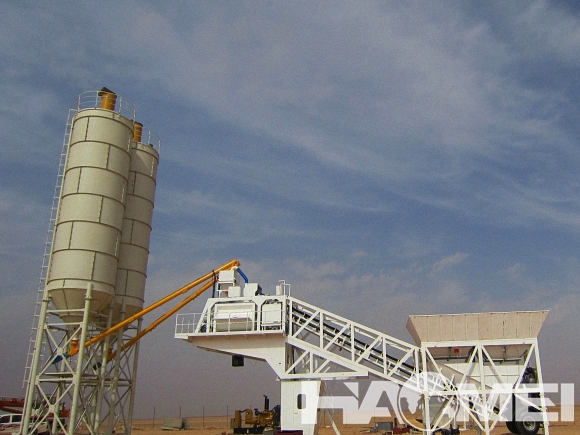

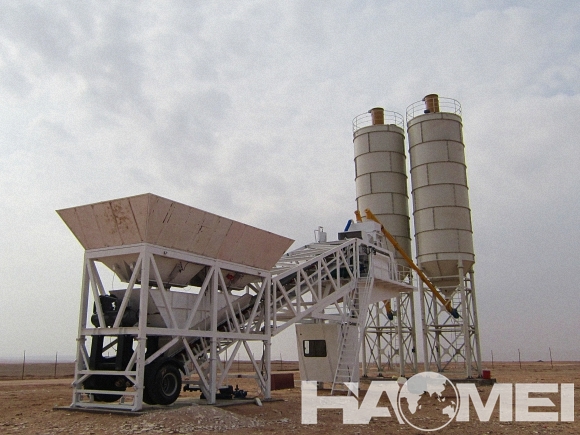

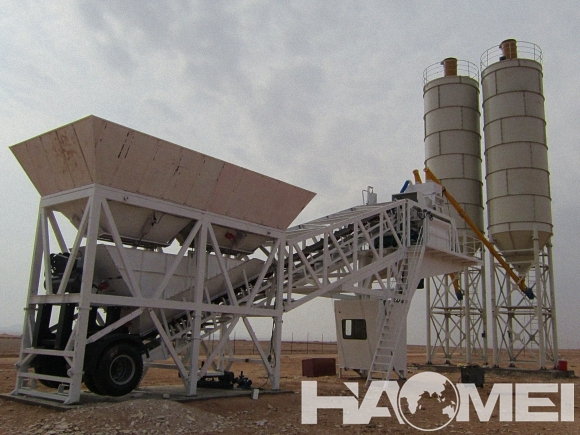

YHZS75 Mobile Concrete Batching Plant

Productivity: 75m3/h
Overall Power: About 105kw
Discharge Height: 3.8m
Power Source: 380/50 (V/ HZ)

Share with:

Description
Parameter
Drawing
Inquiry

The Features of YHZS75 Mobile Concrete Batching Plant:

1. YHZS75 mobile concrete batching plant is a compulsory, high efficient equipment to produce plastic, dry concrete, etc., which is widely used in large and medium-sized construction, road and bridge engineering, the production of commercial concrete ideal equipment.

2. The stirring series host using JS Series twin-shaft forced type JS1500 concrete mixer, with a homogeneous good mixing performance.

3. High efficiency mixing console-JS1000 concrete mixer improve the mixing speed and shorted the mixing cycle, to prolong the service life

4. It uses the latest design ideas of electronic weighing, computer control digital display control technology, electronic volume with buffer device and automatic compensation function, high accuracy.

5. The aggregate system uses a large belt width herringbone material with boardwalk, which is the ideal choice for the majority of the construction to produce high quality concrete.

6. Dynamic display on a computer screen process, the operator can easily replace the production technology parameters, adjusting the production of single to complete the required action.

Specification	Unit	Value
Productivity	m3/h	75
Weighing scale Concrete	kg	3750
Weighing scale Cement	kg	900
Weighing Scale Water	kg	450
Weighing Scale Liquid Additive	kg	45
Overall Power	kw	About 105
Power Source	V/ HZ	380/50
Discharge Height	m	3.8
Overall Weight	t	25(cement silo not included)
Trail speed	km/h	≤40
Specification(LxWxH) During work	m	18.1x3.6x8.2
During transportation	m	18.6x2.4x4.35
