Concrete Batcher Machine
2023.11.08

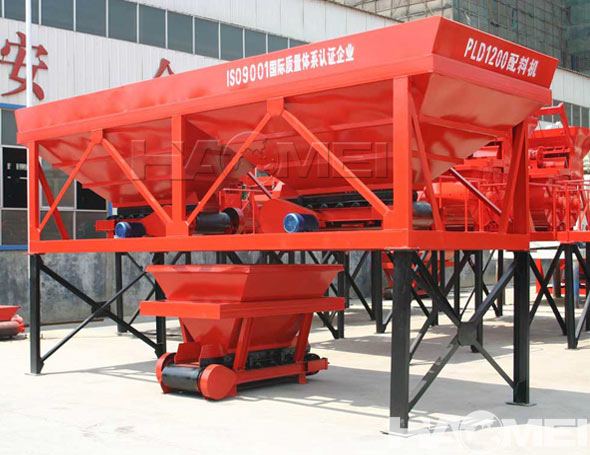

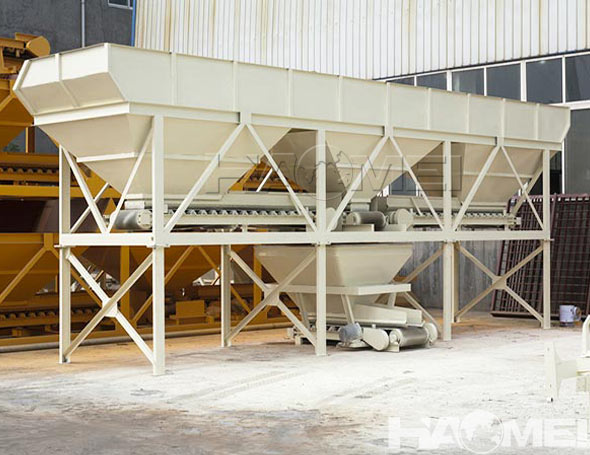

The concrete batcher machine can automatically batch all kinds of aggregates, cement, additives and so on according to the proportion according to the needs of the concrete batching plant, realizing fully automatic operation. The main parts of the concrete batching machine include: storage hopper, weighing hopper, belt, pneumatic butterfly valve, cylinder, weighing unit, vibrating machine and so on. Concrete batching machine is a kind of automated equipment, which is used to batch all kinds of aggregates, cement, additives and so on according to the proportion, and is mainly used in the concrete construction industry. This kind of equipment can improve the accuracy and efficiency of batching, and can realize automation and intelligent operation, reducing the cost and error of manual operation.
The classification of concrete batcher machine mainly includes the following:
According to the number of material proportioning is divided into: two-bin, three-bin, four-bin.
According to the matching concrete mixer model is divided into: PLD 800, 1200, 1600, 2400, 3200, 4800.
According to the dosage measurement mode is divided into: each material calculation, each material separate measurement.
According to the batching control mode is divided into: belt type, cylinder type.
In addition, different specifications of concrete batching machine have different sizes, for example, the external dimension of three-bin batching machine is 9900×2000×3300mm.
When choosing the specification and size of the concrete batcher machine, it is necessary to choose according to the type of aggregate needed for the customer's project and the quality requirements of the mixed concrete. Generally speaking, a set of standard commercial concrete mixing plant requires at least three kinds of aggregate, corresponding to HZS60 small scale concrete batching plant, and other large and medium sized commercial concrete mixing plants like HZS90, HZS120, HZS180, HZS240, etc. Generally speaking, the kinds of aggregates required by a set of standard commercial concrete mixing plant are four kinds of aggregates, and the corresponding batching machine is generally selected as three-bin concrete batching machine or four-bin concrete batching machine.
When using the concrete batcher machine, you need to choose according to the type of aggregate needed for the project and the quality requirements for mixing concrete, and you need to carry out regular maintenance and repair to ensure the normal operation and service life of the concrete batching plant equipment.
