Concrete Mobile Batching Plant
2022.10.17
The mixer model of concrete mobile batching plant is JS series twin shaft concrete mixer, which has strong mixing capacity and is suitable for mixing concrete materials with various characteristics. The twin shaft forced concrete mixer has a large feeding capacity and is suitable for the configuration of various batching concrete.

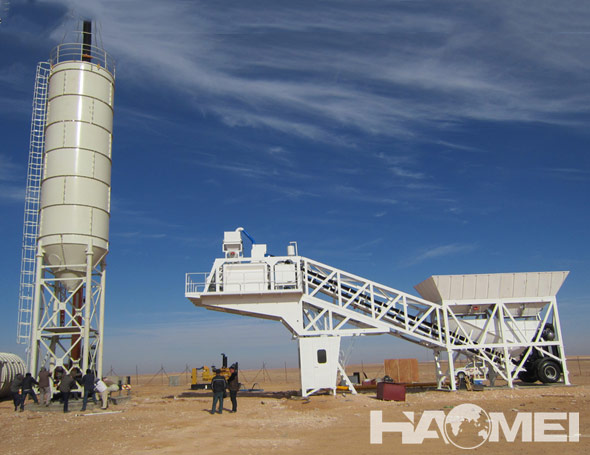

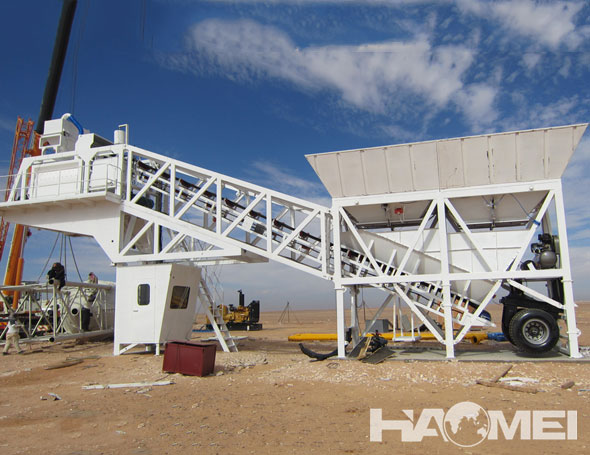

YHZS concrete mobile batching plant adopts PLD concrete batching machine, and it supplies material to the mixing host through a belt conveyor, which is suitable for batching of two kinds of aggregates. The proportion of the sensor is linked to the control room to ensure that the weighing accuracy of the aggregate is less than or equal to 2%, thereby ensuring the quality of mixing. YHZS series mobile concrete batching plant feeder belt conveyor frame is a truss structure connecting the main chassis and the aggregate batching frame, and forms the main body with the whole station without disassembly. The control room of the YHZS mobile concrete batching plant adopts a microcomputer control system to automatically feed materials, with a high degree of automation. All functional units of the YHZS mobile concrete batching plant are located on an integral tray, which is equipped with wheels and traction trailers to realize the overall relocation of the mobile batching plant.
Performance advantages of concrete mobile batching plant are:
1, The structure design is compact, and most of the batching plant components are concentrated on a single trailer unit;
2, The operation mode is humanized, the work is stable and reliable, and it can run stably in various harsh environments;
3, The twin-shaft forced mixer can run continuously, stir evenly, and the stirring movement is strong and fast;
4., The whole mobile concrete batching plant can be quickly transported to the construction site in the form of full hanging and assembled on site.
