Self Loading Concrete Mixer 1.2 Cubic

Production Capacity: 1.2 Cubic Meter/Drum
Rated Power: 55kw
Fuel tank: 63L
Water tank: 400L

Share with:

Product Details

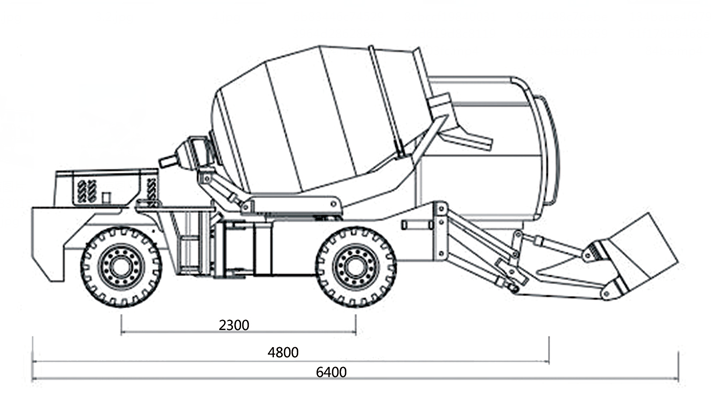

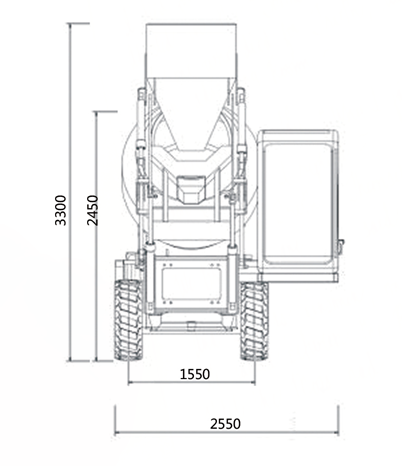

Configuration and Drawing
Technical Features
Inquiry

Mobile self loading concrete mixer is an efficient concrete solution which can automatically fulfill the work of loading, mixing, transportation and unloading. Thus it can replace 4-6 workers and significantly cut the labor cost. The compact design makes it flexible in narrow and limited space. Haomei self loading concrete mixers are available in 1.2cbm, 1.6cbm, 2.0cbm, 2.6cbm, 3.0cbm, 3.5cbm and 4.0cbm to meet demands of various projects. Haomei self loading concrete mixer truck will finish per batch in 12-15 minutes, one hour can finish at least 4 batches.

Advantages of Haomei 1.2 m³ mobile self-loading Concrete Mixer

1.Customize your machine according to your needs.
2.Conventional bucket or clamshell bucket& Skimmer for road or rail use.
3.Pressure transducers or load cells for weighing.
4.Alternative environment friendly powertrain solutions and Electric propulsion soon available.
5.Realizing automatic loading and discharging, largely improve working efficiency and cut down cost.
6. Short mixing cycle means high productivity and output.

We Promise…

1. One year warranty;
2. Go to your site and help you installation and debug;
3. Free training for your operator;
4. Any problem, we will be here to serve you, or go to your city, check and maintain;
5. Spare parts are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours;
6. Introduce other users to buy our self loading concrete mixers, we will give you some commission.

In addition, Haomei mobile self loading concrete mixers have obtained ISO certificate, you don’t have to worry about the quality of our products. And the second reason is our considerate service. Recently, we Haomei have updated our own enterprise culture. Our prospect is to build global industrial products one-stop service platform. Of course, the core of it is the service.

Equipment Model	1.2 cubic mobile self loading concrete mixer
Drum geometrical capacity	1700L
Discharge Capacity	1200L
Engine Model	Yunnei 490 Turbo-Charged
Rated Power	55kw
Gear box model	ZL-265 Power Shift Gearbox
Gear	4 forward 4 back
Fuel tank	63L
Total hydraulic system capacity	63 liters
Oil tank	16 liters
Reducer	KY07-2-0
Hydraulic Pump	FC50/40
Hydraulic Motor	BM5-120
Water tank	400L
Water supply	Time relay
Overall dimensions(LWH)	640025502450
Wheelbase (mm)	2400
Curb Weight (kg)	4185
Drive Form	Torque converter
Drum rotate	270º
Drum mixing speed (r/min)	13
Chassis Max.Speed (kn/h)	30
Maximum grade	30º
Maximum turning radius (mm)	4700
Minimum ground clearance (mm)	280

schwing stetter self loading concrete mixer price

1. Shot blasting machine

When the elements are moved in to the machine, thousands of the little steel balls will heat on the surface of elements. Then the surface will become uneven, and it will increase the adhesive force. So it will ensure good painting.

ajax fiori argo 4000

2. Robot welding

Here are advanced technology of welding robots, which ensures high working efficiency and high accuracy

ajax fiori argo 4000 price

3. Closed painting room

In order to assure good painting and environmental protection, here is closed painting room. The machine will be shinning even after long time use. Moreover, we can also meet the environmental standards, so that we can manufacturer and delivery the equipment for our customers on time.

ajax fiori concrete mixer

4. Sufficient elements stored

Here are sufficient elements stored in our factory, which ensures short delivery time. Meanwhile, we have ability to accept big orders from our customers.

ajax self loading concrete mixer price

5. Strict quality inspection

Here are quality inspection department, and strict inspection guarantees that the unqualitified equipment will be reworked and will not be delivered to our customers.

ajax fiori 2000 price

6. Test run

Here are wide areas for our customers to test the self loading concrete mixer truck, and welcome to test the mixer truck in our factory. Driving, feeding, mixing, discharging and climbing are available.
