Self Loading Concrete Mixer 1.8 Cubic

  •

    Production Capacity: 1.8 Cubic Meter/Drum

  •

    Rated Power: 78kw

  •

    Fuel tank: 63L

  •

    Water tank: 400L

Share with:
  • Product Details

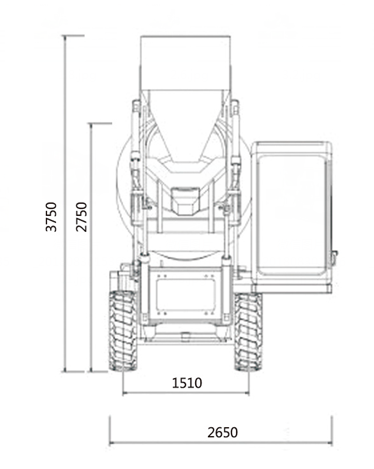

  • Configuration and Drawing
  • Technical Features
  • Inquiry
Self loading concrete mixer mainly mixes plastic concrete and semi-plastic concrete. Haomei self loading concrete mixers have many types for your reference: 1.2 cubic meter, 1.8 cubic meter, 2.6 cubic meter, 3.5 cubic meter, 4 cubic meter, 5.5 cubic meter and 6.5 cubic meter.

During project, mini self loading concrete mixer truck loads materials by self, doesn't need any other auxiliary equipment, and it has characteristics of small volume, four wheels-driving and steering. What's more, it can discharge concrete at 270 degrees, which is much more convenient in all kinds of concrete production construction site, especially particularly small and narrow construction sites, it is very cost-saving for the majority of users.

Advantages of 1.8 m³ mini Self-loading Concrete Mixer


1.Independent water supply system, ensure the high quality of concrete.
2.Twin joystick&limited toggles are in tune with a smart cockpit design.
3.Zones of reach and comfort comply with ergonomic norms.
4.Command integration confers better control and maneuverability.
5. Achieved full in-cab machine control. (Easy and comfortable operation)

If you desire to buy a self mixing concrete truck , We Haomei is an absolutely reliable self loading transit mixer manufacturer, we have various products that have been exported to more than 83 countries and areas. And if you want to increase your ability on concrete , it is a wise choice to buy a self loading concrete mixer truck and we will give you reasonable self loading mobile concrete mixer price. Meantime, we can also supply ready mix concrete plant, concrete mixer with pump, forward transit mixer truck, etc. Please feel ease to contact us, we will give you a quick reply in 24 hours.



Equipment Model

1.8 cubic self loading concrete mixer

Drum geometrical capacity

2680L

Discharge Capacity

1800L

Engine Model

Yuchai 4102 Turbo-Charged

Rated Power

78kw

Gear box model

ZL-265

Gear

4 forward 4 back

Fuel tank

63L

Total hydraulic system capacity

63 liters

Oil tank

16 liters

Reducer

HJ80-43

Hydraulic Pump

FC50/40

Hydraulic Motor

BM5-160

Water tank

400L

Water supply

Time relay

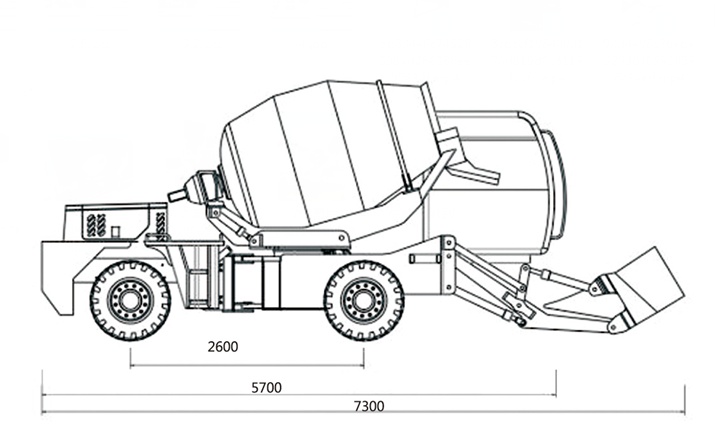

Overall dimensions(L*W*H)

7300*2600*2750

Wheelbase (mm)

2615

Curb Weight (kg)

5666

Drive Form

Torque converter

Drum rotate

270º

Drum Mixing Speed (r/min)

13

Chassis Max.Speed (kn/h)

30

Maximum grade

30º

Maximum turning radius (mm)

5270

Minimum ground clearance (mm)

280

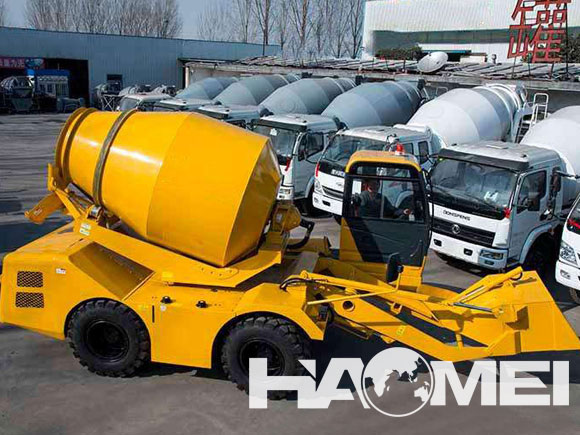

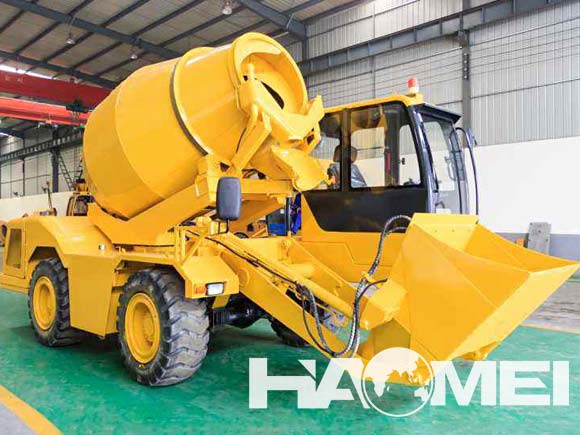

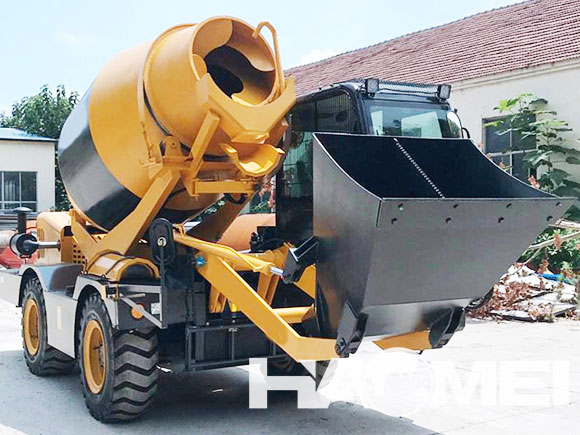

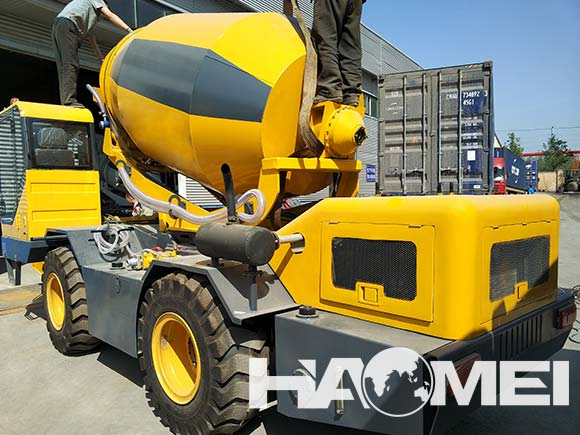

mini self-loading concrete mixer
mini self-loading concrete mixers

1. Shot blasting machine


When the elements are moved in to the machine, thousands of the little steel balls will heat on the surface of elements. Then the surface will become uneven, and it will increase the adhesive force. So it will ensure good painting.


ajax fiori argo 4000


2. Robot welding


Here are advanced technology of welding robots, which ensures high working efficiency and high accuracy


ajax fiori argo 4000 price


3. Closed painting room


In order to assure good painting and environmental protection, here is closed painting room. The machine will be shinning even after long time use. Moreover, we can also meet the environmental standards, so that we can manufacturer and delivery the equipment for our customers on time.


ajax fiori concrete mixer


4. Sufficient elements stored


Here are sufficient elements stored in our factory, which ensures short delivery time. Meanwhile, we have ability to accept big orders from our customers.


ajax self loading concrete mixer price


5. Strict quality inspection


Here are quality inspection department, and strict inspection guarantees that the unqualitified equipment will be reworked and will not be delivered to our customers.


ajax fiori 2000 price


6. Test run


Here are wide areas for our customers to test the self loading concrete mixer truck, and welcome to test the mixer truck in our factory. Driving, feeding, mixing, discharging and climbing are available.


schwing stetter slm 4000
