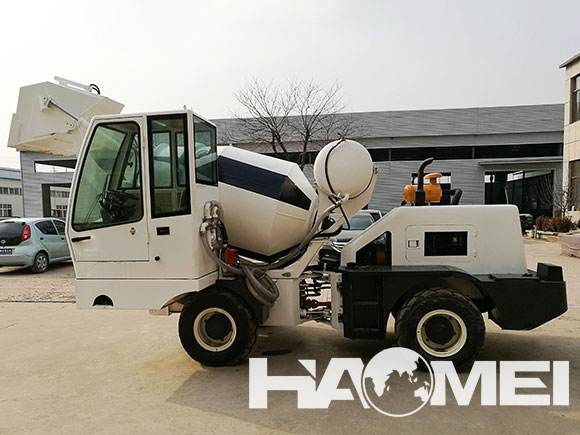

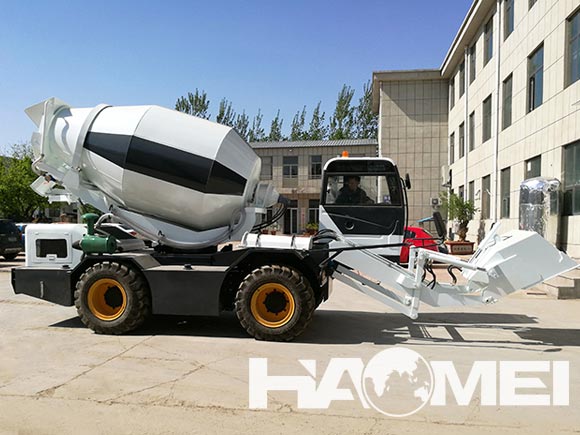

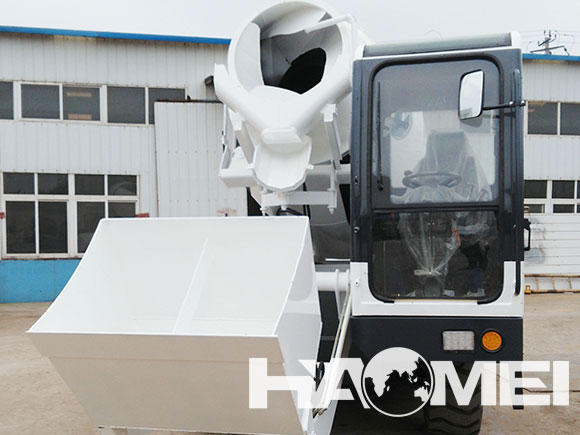

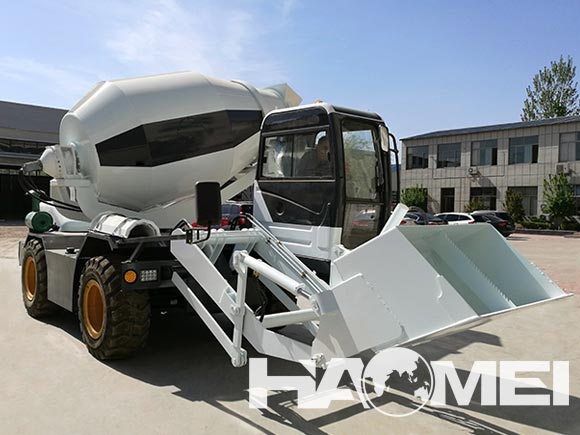

Self Loading Concrete Mixer 3.5 Cubic
-
Production Capacity: 3.5 Cubic Meter/Drum
-
Rated Power: 85 Kw
-
Fuel Tank: 75 L
-
Water Tank: 620 L
- Product Details

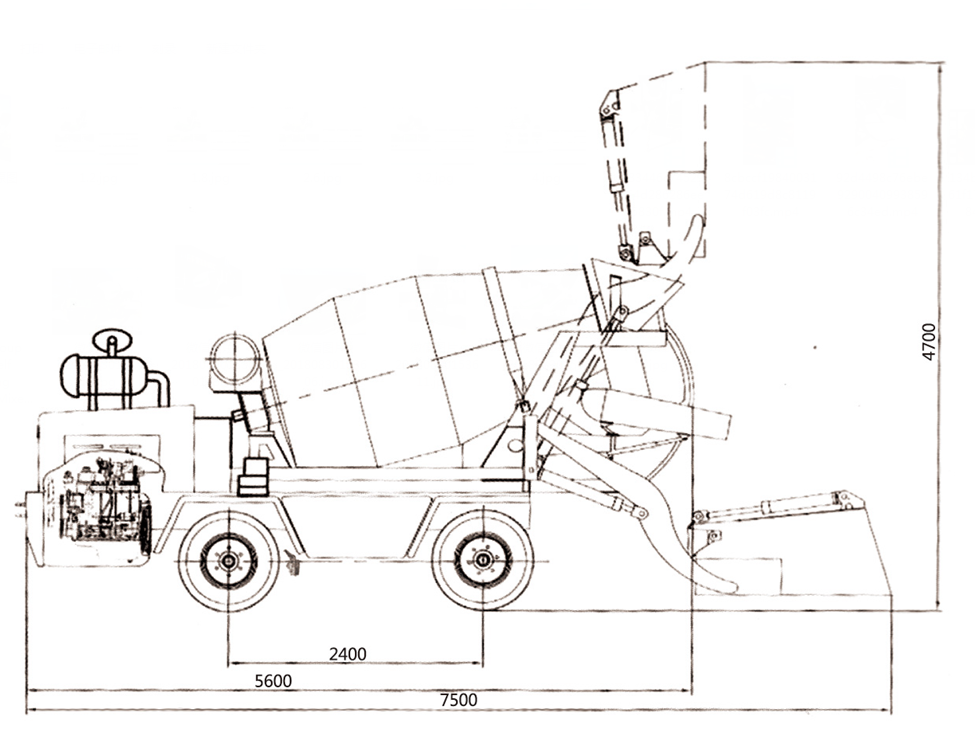

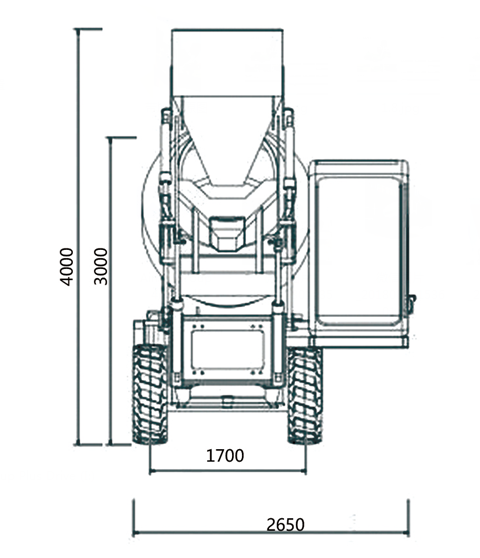

- Configuration and Drawing
- Technical Features
- Inquiry
Advantages of Self loading concrete mixer for sale 3.5 cubic meter are:
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
5.Full in-cab machine control ensure easy and comfortable operation
6.Easy maintenance save labors for construction projects.
7. No dead angle assures safe and easy operation
Self loading concrete mixer for sale has small volume, and driving cab is large enough to accommodate one person. If you need a 3.5 cub self-loading concrete truck mixers, you can leave us message. Our salesman will negotiate all of things with you about the self loading concrete mixer machine, such as, self loading concrete mixer price, color, driving method, shipment method, payment method, etc; then after you pay us, our salesman will monitor the whole production of self loading concrete mixes for sale, he will do test run and inspection before shipment, ensure the machine can function normally.
The reason that Haomei self loading concrete mixer machine can won good reputation is lower price besides high quality. As a professional self loading concrete mixer manufacturer, our enterprise has good rich manufacturing experience. Good production team will strictly control the quality, ensuring you can get our self loading concrete mixer in a good condition. After you leave your message to us in our website, our salesman will reply you as soon as possible. They will communicate with you in detail about what type and model of self-loading concrete mixers you need to buy.
Equipment Model |
3.5 cubic self loading concrete mixer |
Drum geometrical capacity |
4740L |
Discharge Capacity |
3500L |
Engine Model |
Yuchai 4105 Turbo-Charged |
Rated Power |
85kw |
Gear box model |
ZL-280 Power Shift Gearbox |
Gear |
2 Forward 2 Back,Front Wheels Steering |
Fuel tank |
75 L |
Total hydraulic system capacity |
75 Liters |
Oil tank |
16 liters |
Reducer |
HJ80-43 |
Transmission |
Hydraulic |
4 wheel driver,2 wheel steering |
|
Hydraulic Pump |
CBGQ 2040/2080 |
Hydraulic Motor |
BM5-160 |
Water tank |
620 L |
Water supply |
Time relay |
Overall dimensions(L*W*H) |
7830*2680*4170 |
Wheelbase (mm) |
2900 |
Curb Weight (kg) |
7500 |
Drive Form |
Torque converter |
Drum rotary |
270º |
Drum Mixing Speed (r/min) |
13-20 |
Max.Speed (km/h) |
30 |
Maximum grade |
30º |
Maximum turning radius (mm) |
5300 |
Minimum ground clearance (mm) |
380 |

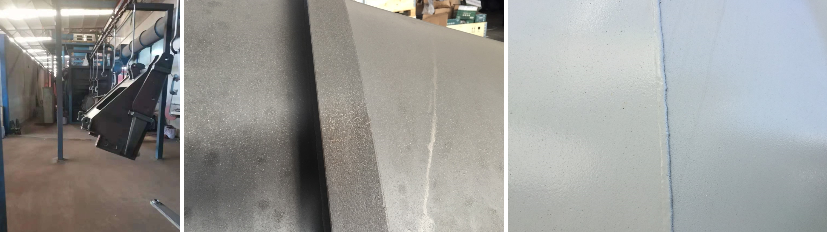

1. Shot blasting machine
When the elements are moved in to the machine, thousands of the little steel balls will heat on the surface of elements. Then the surface will become uneven, and it will increase the adhesive force. So it will ensure good painting.

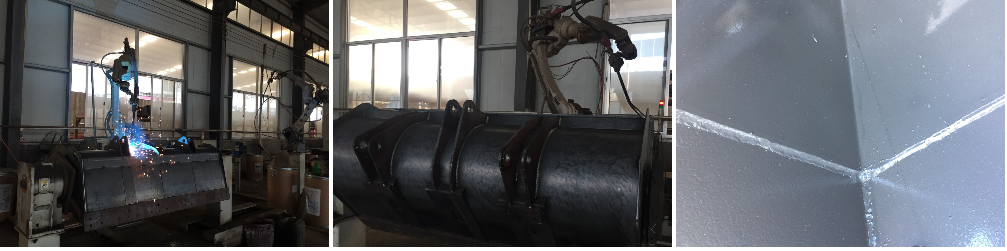

2. Robot welding
Here are advanced technology of welding robots, which ensures high working efficiency and high accuracy

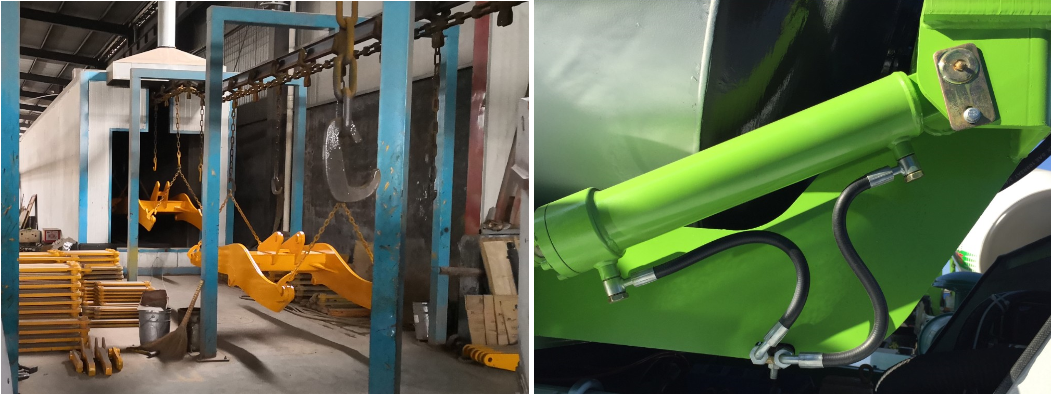

3. Closed painting room
In order to assure good painting and environmental protection, here is closed painting room. The machine will be shinning even after long time use. Moreover, we can also meet the environmental standards, so that we can manufacturer and delivery the equipment for our customers on time.

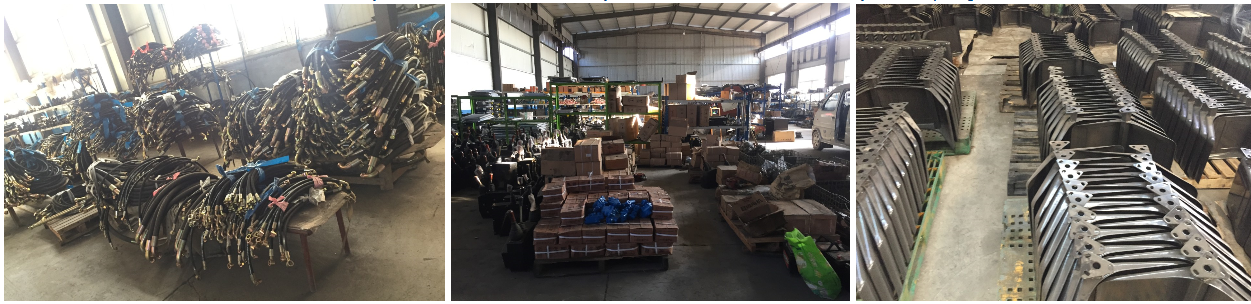

4. Sufficient elements stored
Here are sufficient elements stored in our factory, which ensures short delivery time. Meanwhile, we have ability to accept big orders from our customers.

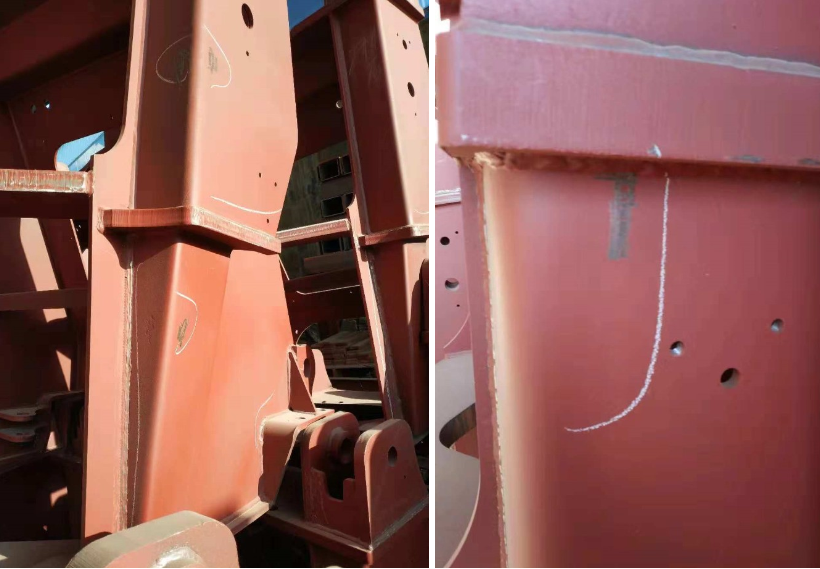

5. Strict quality inspection
Here are quality inspection department, and strict inspection guarantees that the unqualitified equipment will be reworked and will not be delivered to our customers.

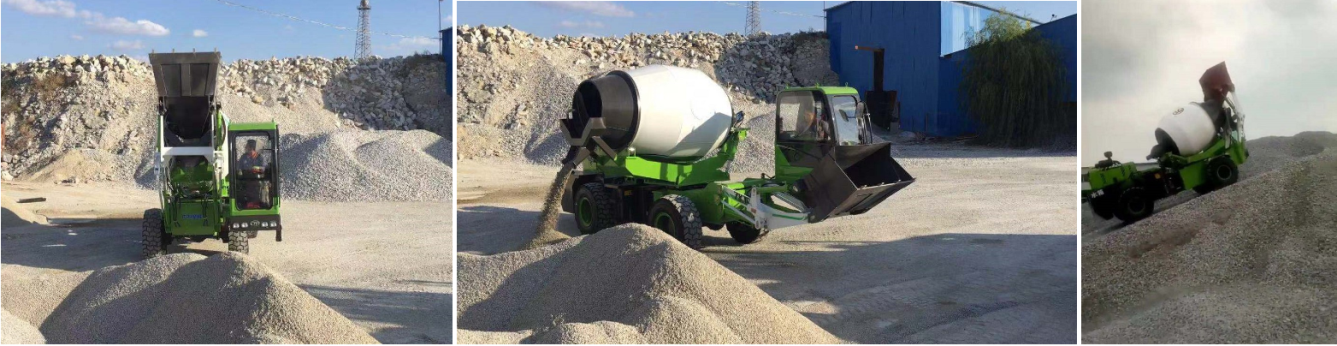

6. Test run
Here are wide areas for our customers to test the self loading concrete mixer truck, and welcome to test the mixer truck in our factory. Driving, feeding, mixing, discharging and climbing are available.
