HZS50 Stationary Concrete Batching Plant

Productivity: 50m3/h
Capacity of Mixer: 1.0m3
Discharge Height: 3.8m
Feeding Type: Skip Hopper

Share with:

Description
Parameter
Drawing
Inquiry

1. The Description of HZS50 Concrete Batching Plant:

HZS50 series concrete batching plant(concrete mixing plant) belongs to compulsory and efficiency equipment, which can produce various kinds of concrete including quaking concrete and hard concrete.

2. Short Features of HZS25 Concrete Batching Plant:

1.It is widely used on small and medium scale building project, road and bridge projects . It’s also an ideal equipment to produce commercial concrete.

2. The main mixer of this series concrete batching plant use JS series twin-shaft concrete mixer which is very reliable.

3. It can be operated and maintained conveniently through high technology control system with the newest design concept.

4.Saving space

5.Cost-effective choice

Specification	Unit	Value
Productivity	m3/h	50
Capacity of Mixer	m3	1
Discharge Height	m	3.8
Aggregate Bin	Quantity	3
Capacity of Aggregate Bin	m3	10
Max. Weighing Value of aggregate	kg	3000
Max. Weighing Value of cement	kg	600
Max. Weighing Value of water	kg	400
Max. Weighing Value of additive	kg	50
Feeding Type	/	Skip Hopper
Cement Silo	/	Optional
Cement Screw Conveyor	/	Optional
Control Mode	/	Auto/Semi control

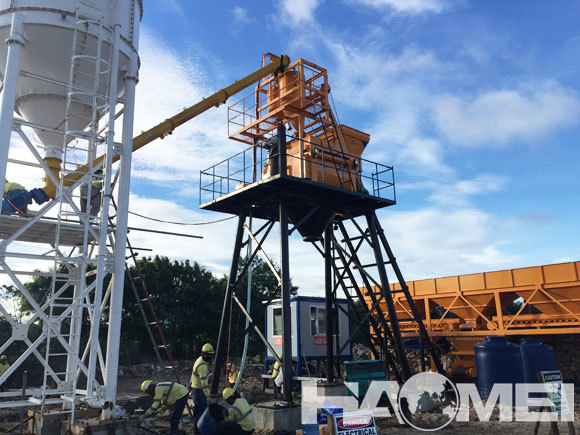

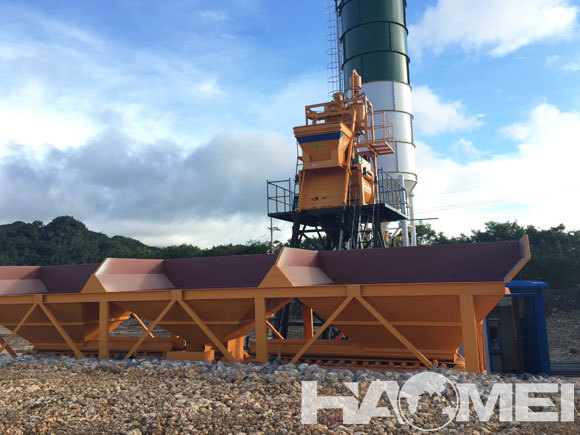

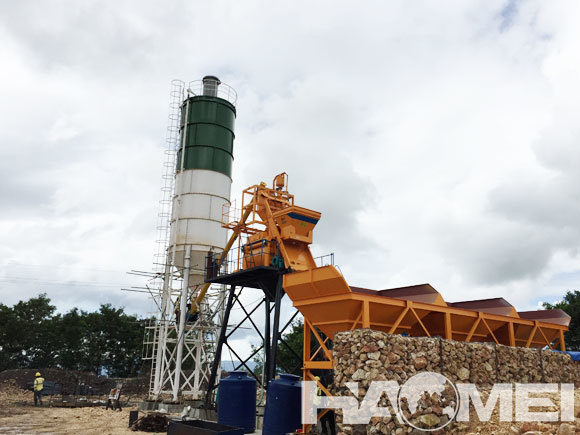

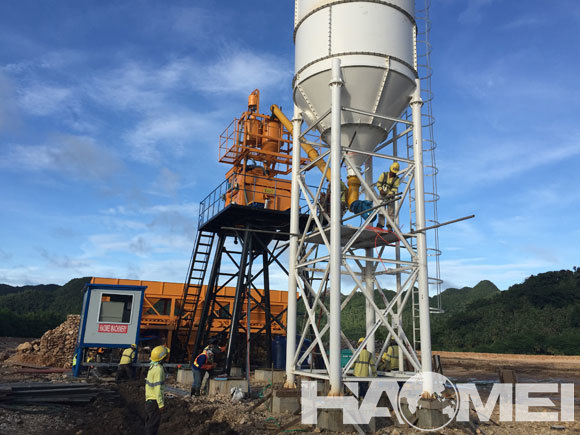

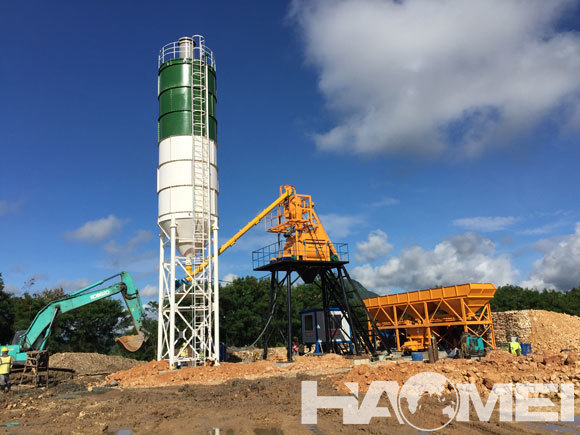

hzs50 stationary concrete batching plant
