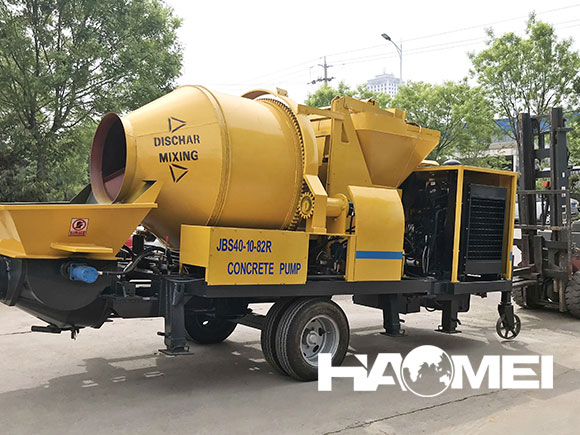

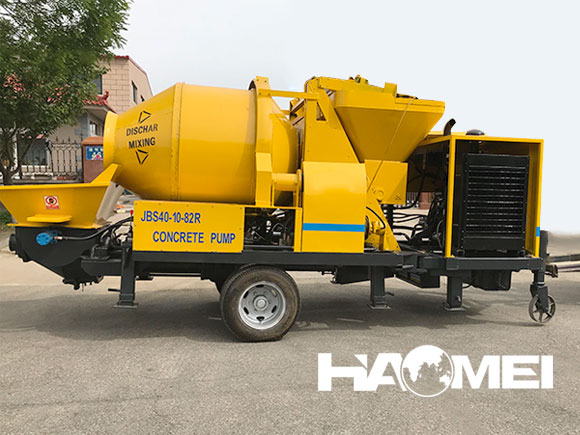

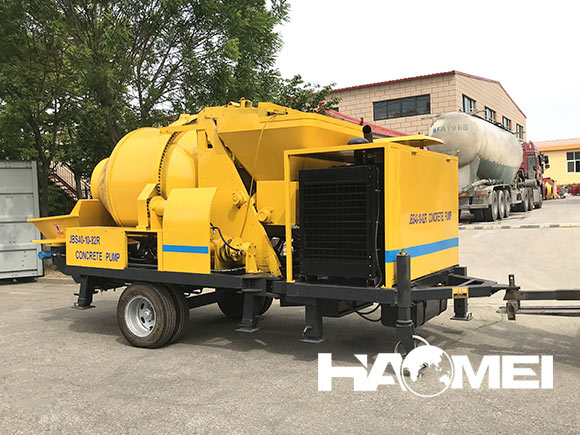

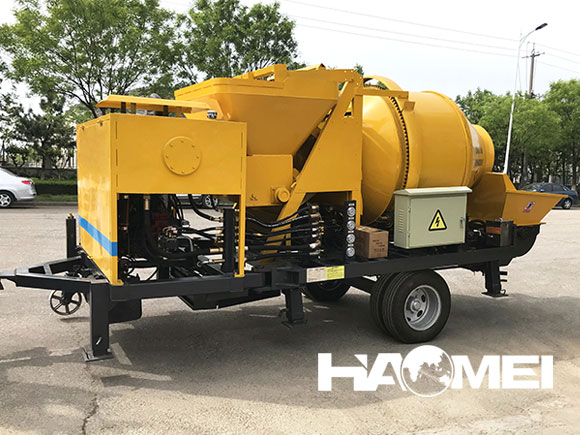

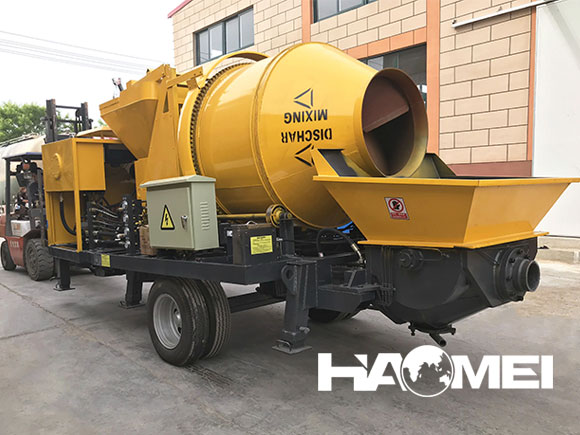

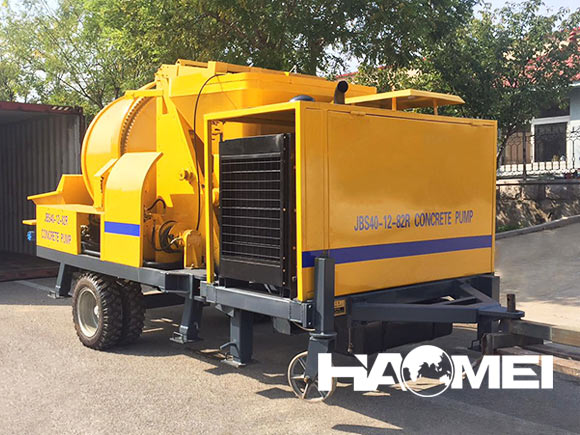

Concrete Mixer Pump

Concrete mixer pump is a kind of concrete pumping machine, which is the combination of concrete pump and cement mixer, and it is a special kind of concrete trailer pump. With fully automatic construction operation system, mobile concrete pumping equipment has the function of feeding materials, mixing and high-pressure pumping. So concrete mixer machine with pump is characteristic of easy operation, stable performance and flexible movement. whose capacity include 30 m3/h and 40 m3/h. The concrete pump sale with small volume is more suitable for small construction projects, such as bridges, tunnels, urban and rural building construction. The vertical pumping distance is 120m and the horizontal delivery distance is 300 m to 500 m.

Main Application of Concrete Mixer Pump

Concrete mixing and pumping machine is a common equipment for building, bridge and tunnel construction projects. Cement mixer pump is a new type concrete mixing pump, which is specially design for small civil building projects. Concrete mixer machine with pump has a high automation and save money and lab our greatly. Equipped with high-quality system, cement mixer and pump has stable performance and low failure rate and high reliability. Besides, mixer pump also be used to transport greening soil, grout foundational pipe and transport sludge. Contact us to get more details or concrete mixer pump price.mp is a kind of concrete pumping machine, which is the combination of concrete pump and cement mixer, and it is a special kind of concrete trailer pump. With fully automatic construction operation system, mobile concrete pumping equipment has the function of feeding materials, mixing and high-pressure pumping. So concrete mixer machine with pump is characteristic of easy operation, stable performance and flexible movement.

Advantages of Concrete Mixer With Pump:

1, Our diesel concrete mixer with pump is equipped with intelligent electronic control system, which can automatically adjust the speed of diesel engine, ensuing the smooth running of the equipment and save fuel consumption.
2, Our machine has high outlet pressure, and it can meet the requirements of high-rise buildings and long-distance construction projects.
3, The hydraulic oil cooling adopts advanced cooling system, and it has no need of water and simple operation.
4, Diesel concrete mixer with pump has strong anti-pump function, which can greatly reduce pipeline blockage of the equipment.

Our Perfect After-sales Service:

1. We will answer your email at the first time we have received your inquiry.
2. We will send expert to help you finish the installation as well as train your workers if you need.
3. We have professional after-sales service staff to help you to solve any problems immediately which you may meet after buying our machine.
4. We guarantee for you with lifelong maintenance at all times.

1. Hydraulic system

Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judging and removing trouble.
Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.
Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
Cone sealing of all pipes make the pipe joints seal reliably.
The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
Adopt emulsification technology of initiative and passivity recovery integration.

2. Electric control system

Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
The wire remote equipment is convenient for operation far away.
Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.

3. Mechanical system

The design of hopper and S valve and so on adopt Ｉ－DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
The mixer have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be used in lower abrasion. Haomei’s spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.

4. Lubrication system

The hydraulic circuit will take high oil into double distributor, and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealing.

5. Cooling system

The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.
