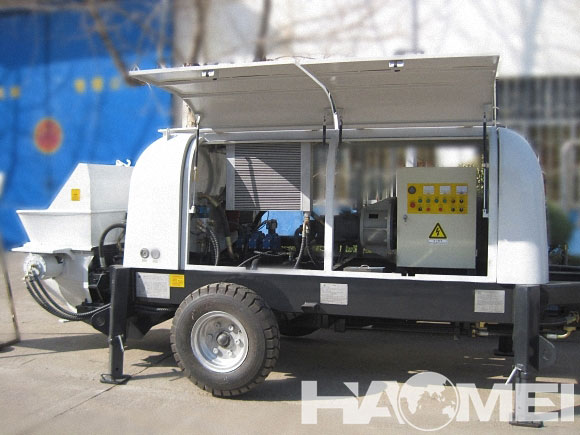

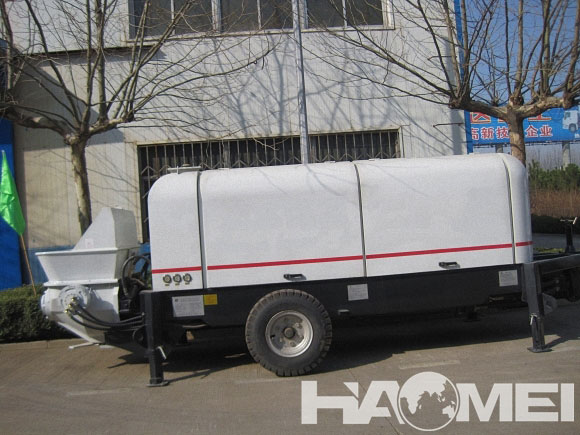

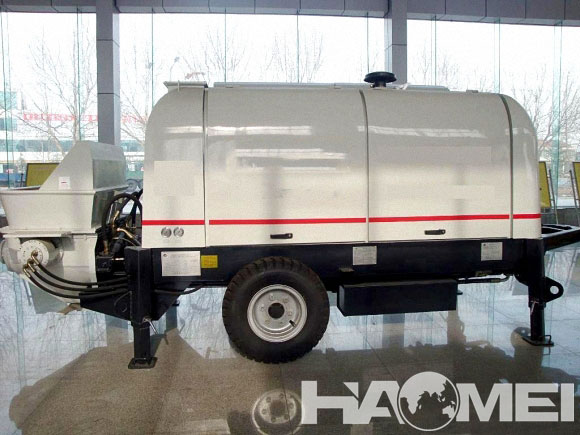

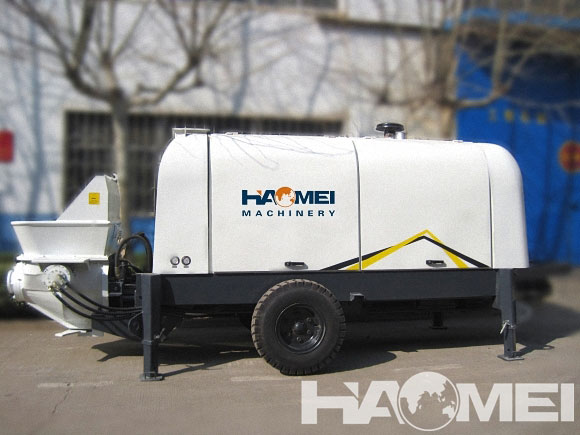

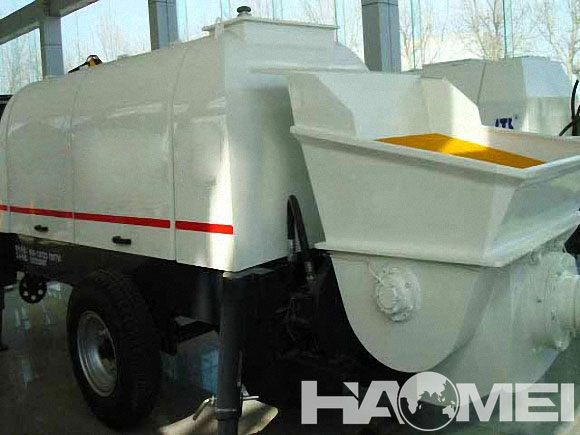

HBT90S1821-200 Trailer Concrete Pump

Theory Concrete Output(Low / High Pressure): 60/90m3
Concrete Pressure (Low / high pressure): 21/10.8Mpa
Hydraulic system pressure: 32Mpa
Rotation speed: 1480r/min

Share with:

Description
Parameter
Drawing
Inquiry

The Description of HBT90S1821-200 Trailer Concrete Pump:

HBT90S1821-200 Trailer Concrete Pump is a kind of gravel, sand, cement and water by mixing then stirring together, and to achieve concrete pumping machinery. Combining the conventional blenders with concrete trailer pump together, the concrete pump trailer is a particularly suitable site mixing and pumping of concrete construction equipment. Depending on the configuration of the mixer stirring way, concrete trailer pump can be divided into: roller concrete trailer pump and compulsory concrete trailer pump; Depending on the walk way, the concrete trailer pump can be divided into: trailer and vehicle-mounted pump.

Specification	Unit	Value
Theory Concrete Output(Low / High Pressure)	m3/h	90/60
Concrete Pressure (Low / high pressure)	Mpa	21/10.8
Hydraulic system pressure	Mpa	32
Rotation speed	r/min	1480
High / low pressure switch		Yes
Distribution valve	S	Valve
Pumping cylinder diameter/ Stroke	mm	200/1800
Main oil pump discharge	ml/r	2x190
Diesel engine	kw	2x110
Voltage/ Frequency	V/Hz	380/50
Hydraulic tank volume	L	700
Height of adding material	mm	≤1450
Hopper volume	m3	0.7
Total mass	kg	7000
Concrete slump	mm	80-230
Aclinic Delivery distance	m	1300
Theory vertical pumping height	m	280
Dimension: LWH	mm	640024802350
