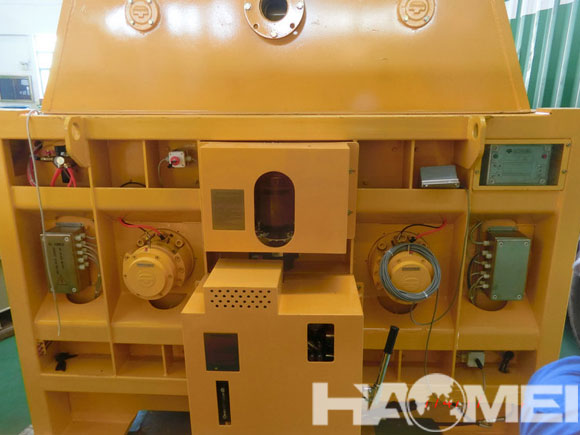

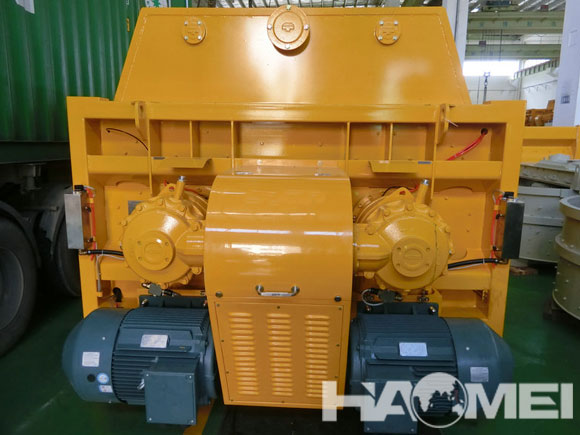

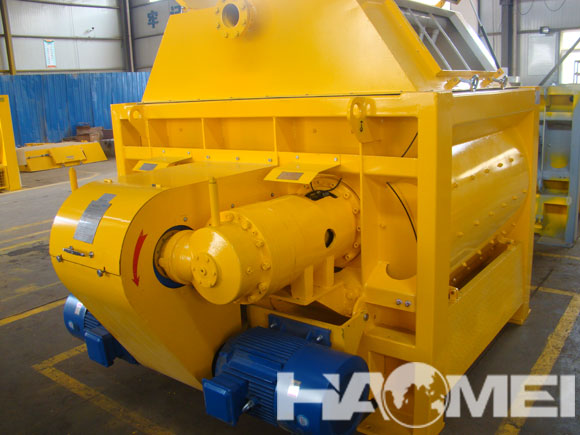

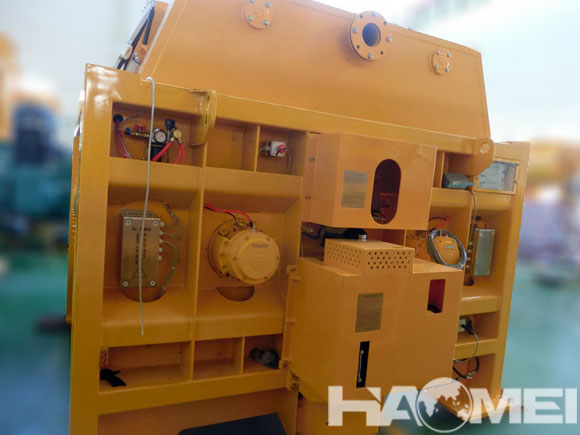

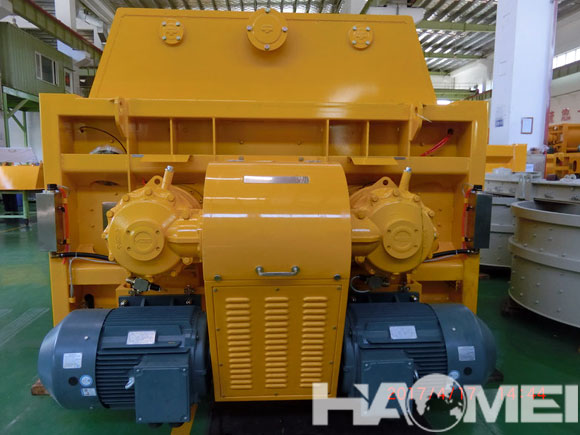

JS1500 Concrete Mixer

Mixer Capacity: 1.5m3
Discharging Volume: 1500L
Charging Volume: 2400L
Mixer Motor Power: 45kw

Share with:

Parameter
Drawing
Inquiry

1.Description of JS1500 Concrete Mixer:

1. JS1500 compulsory concrete mixer discharge every 1.5 square, also known as 1.5 square compulsory concrete mixer is developed from our factory according to SICOMA forced mixing console combined with domestic users.

2. The concrete mixer features a high efficiency forced mixing console. As usual HZS75, HZS90 mixing station or host station.

3. The aircraft has a separate stand-alone operation and dual superiority. The PLD concrete batching machine composed of commodity concrete mixing station, which is widely used in medium and large precast plant and highways, bridges, water , terminals and other industrial and civil engineering.

2. Applications and Features of JS1500 Concrete Mixer:

JS1500 concrete mixer (HZS75 concrete batching plant for sale, HZS90 mixed concrete batching plant) applies to all types of large, medium and small prefabricated factories and roads, bridges, water conservancy, port and other industrial and civil engineering, which can mix dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and all kinds of mortar. The product design is reasonable structure, innovative layout, ease of use and maintenance.

Specification	Unit	Value
Discharging Volume	L	1500
Charging Volume	L	2400
Mixing Capacity	m3	1.5
Aggregate Size	mm	60/80
Working Circle	sec	60
Mixer Motor Power	kw	45
Lifting Motor Power	kw	18.5kw
Pump Moter Power	kw	3kw
Weight	kg	10000
Dimensions	mm	4500x2250x3000
