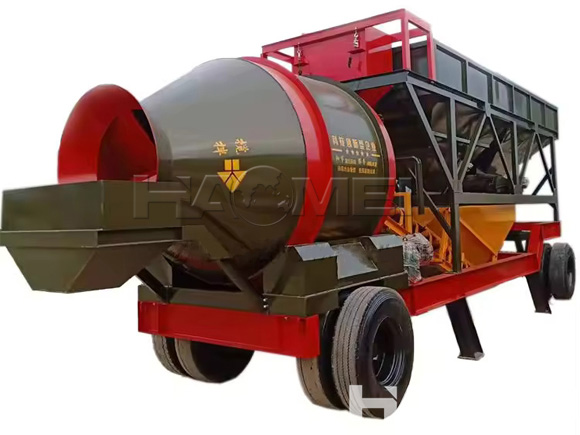

Drum Mobile Concrete Batching Plant

Models: YHZM25-75
Productivity: 25-75m3/h
Mixer: Drum type
Discharging height: 1.6m

Share with:

Description
Features&Application
Video & Cases
Inquiry

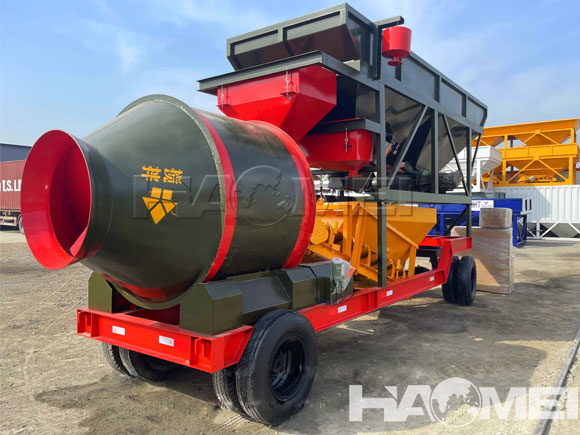

A drum mobile concrete batching plant is a movable concrete mixing plant equipment. Through clever design, the batching system, weighing system, mixing host, material storage, unloading and automatic control system of the concrete batching plant are equipped in a trailer unit, and the movement of the mixing station is realized through a trailer.

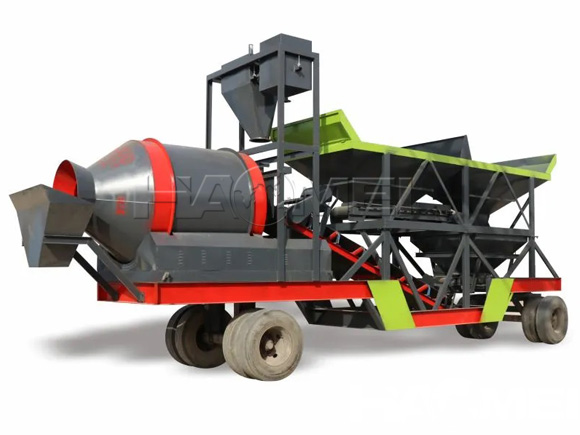

Structure of Drum Mobile Concrete Batching Plants:

1. Concrete mixer chassis: a cantilever-shaped mixing main engine chassis, which contains tow truck traction pins and parking legs; The weighing scale of mixer, cement and water admixture is placed on the chassis; inspection walking platform, railing, etc. are attached to the periphery.

2. Control room: The control room is located at the bottom of the main chassis, and is equipped with a fully automatic mixing plant control system that is the same with that of a stationary concrete batching plant. The control room is used as the front supporting point of the whole station when it is working, and the control room is stowed and stored in the bracket during site transfer, and all control lines do not need to be disassembled.

3. Aggregate batching measurement: this system is located at the back end of the whole station. The upper part is an aggregate (sand, stone) storage hopper. The storage hopper can be divided into 2 or 4 grids, and a heightening plate is set to increase the storage capacity. Pneumatically open the door in sequence, and the aggregate is measured in cumulative measurement of a variety of materials. The bottom is equipped with a walking rear axle and frame legs for working.

4. Belt conveyor frame: This frame is a truss structure connecting the mainframe chassis and the aggregate batching frame. It is equipped with a belt frame; the main frame, belt frame and batching frame are combined to form the main structure of the entire mobile mixing plant

5. Peripheral parts: the cement silo and screw conveyor. The peripheral parts are integral parts regardless of working or transportation states, so they can be transported and disassembled as a whole without disassembly.

Technical Parameters of Drum Mobile Concrete Batching Plant:

Model		JZM500-2	JZM750-2	JZM1000-3	JZM1500-2
Theory capacity		25m³/h	35m³/h	50m³/h	75m³/h
Discharging height		1600mm	1600mm	1600mm	1600mm
Total power		44kw	50kw	58.9kw	66.9kw
Dimension(L * W * H)		8 X 2.2m X3.8m	8m X 2.2m X3.8m	13.5m X 2.3m X 4.2m	12m X 2.3m X 4.2m
Mixing System	Model of Mixer	JZM500	JZM750	JZM1000	JZM1500
	Mixing motor	2*5.5kw	2*7.5kw	2*11kw	2*15kw
	Discharging volume	500L	750L	1000L	1500L
Aggregate System	Model of Batcher	PLD800-2	PLD1200-2	PLD1200-3	PLD1600-2
	Aggregate bin volume	5m³×2	6m³×2	7m³×3	8m³×2
	Max. Aggregate Dia	60/80mm	60/80mm	60/80mm	60/80mm
Measurement System	Cement weighing hopper	500KG	500KG	560KG	900KG
	Water weighing support	220KG	220KG	220KG	330KG
	Additive weighing support	30KG	30KG	30KG	40KG
Trailer Speed		40-60Km/h	40-60Km/h	40-60Km/h	40-60Km/h
Optional cement silo		50/100T	50/100T	50/100T	50/100T

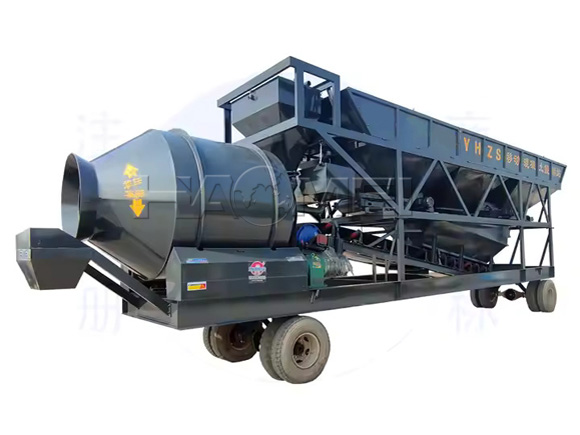

Features of Drum Type Concrete Batching Plant:

1. Rapid and easily to assemble and disassemble, conveniently to transport. All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.

2. The performance of mixing is perfect. It adopts drum type concrete mixer to make the concrete mixing equally in shortest time.

3. For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.

4. Top-quality configuration, high reliability, accurate measurement, easy operation.

Application Fields of Mobile Concrete Batching Plant With Drum Mixer:

Drum mobile concrete batching plants are the best concrete mixing plant model for road, railway, bridge, port, hydropower and other projects.
1. Railway
High degree of automation and high production efficiency make production and processing easy and efficient.

2. Highway
High mixing quality and short cycle time. It is an essential mechanical equipment in road construction.

3. Bridge construction
The triple superiority makes it irreplaceable in bridge construction.

4. Water conservancy construction
Convenient operation and stable operation make water conservancy construction more convenient.

5. Port and dock facilities
A simple mobile concrete batching plant is formed to make port and wharf construction easier.

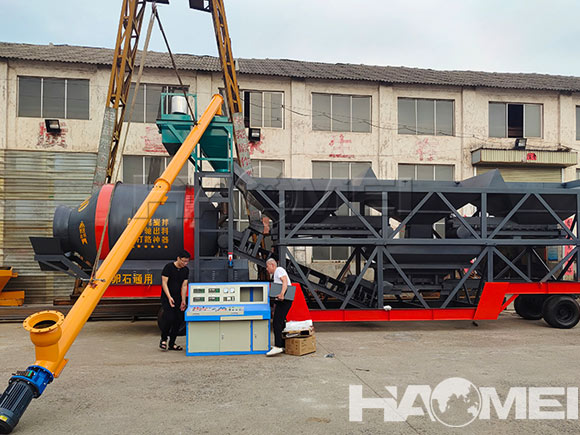

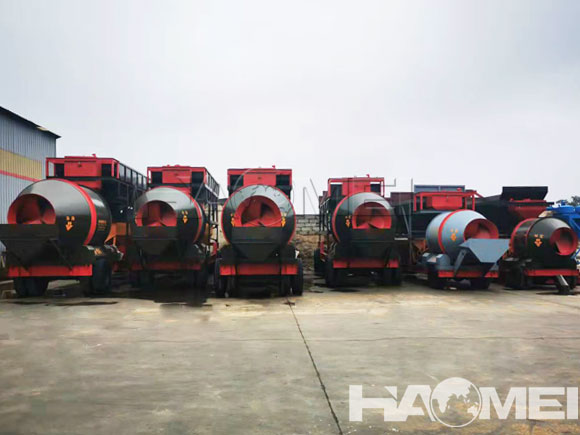

Haomei YHZM Series Mobile Concrete Batching Plant Cases:

Video of Drum Mixer Type Mobile Concrete Batching Plant:
