Components of Batching Plant

 2024.12.18

Concrete batching plant is a facility used to produce concrete, which is widely used in construction works, road works and other infrastructure construction.

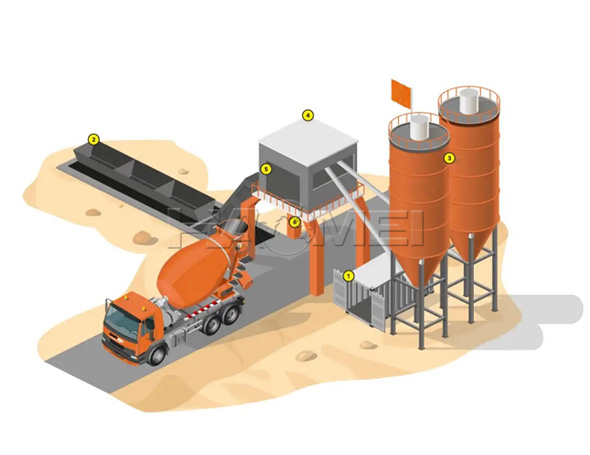

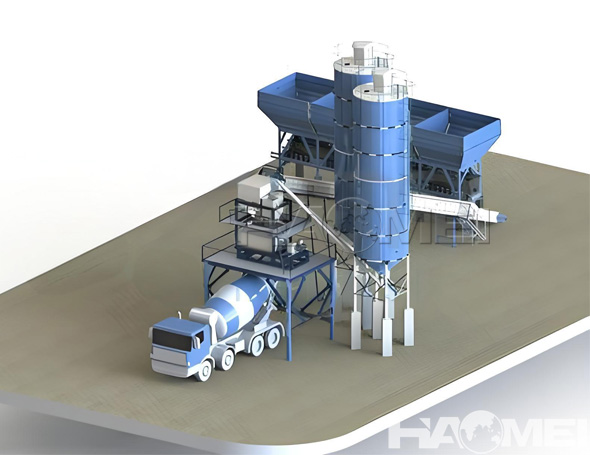

The main components of batching plant include the following parts:
- Silos (storage system):
Silos are used to store various raw materials such as cement, sand, gravel, mineral powder, admixtures etc. Usually there are multiple silos in order to store different types of raw materials.
- Feeding System:
The feeding system is responsible for conveying the stored raw materials to the mixer. Common feeding methods are belt conveyor, screw conveyor, etc. The feeding system is usually equipped with a weighing device to ensure accurate feeding of each raw material.
- Mixer:
The mixer is the core equipment of a concrete batching plant and is responsible for mixing various raw materials into homogeneous concrete. According to the different mixing methods, mixers are mainly divided into forced mixers and self-falling mixers.
- Water Management System:
Water management system is used to store and measure the amount of water. The amount of water added is critical to the performance of the concrete, so water management systems are usually equipped with weighing devices and flow meters.
- Additive Delivery Systems:
Admixtures are used to improve the properties of concrete, such as improving fluidity and frost resistance. Additive delivery systems typically include tanks and metering devices.
- Control systems:
The control system is used to monitor and control all aspects of the concrete batching plant. Modern concrete batching plants are usually equipped with computer control systems, which can realize automated operation and ensure the accuracy and stability of the production process.
- Concrete transportation system:
After the concrete mixing is completed, the concrete needs to be delivered to the construction site through the transportation system. Common transportation methods include concrete mixer trucks and pumping systems.
- Dust removal and environmental protection equipment:
In order to reduce the dust and noise generated during the production process, concrete batching plants are usually equipped with dust removal equipment and noise control facilities to comply with environmental requirements.
- Electrical system:
The electrical system provides power for the concrete batching plant, including motors, inverters, and distribution cabinets.
- Infrastructure:
It includes supporting roads, platforms, fences, etc. to ensure the normal operation and safety of the concrete batching plant.

The above are the main components of batching plant, and each part plays an important role in the concrete production process. Through reasonable configuration and optimized design, the concrete batching plant can efficiently and stably produce concrete that meets the quality standard.
