Concrete batching plant js750
2020.04.01

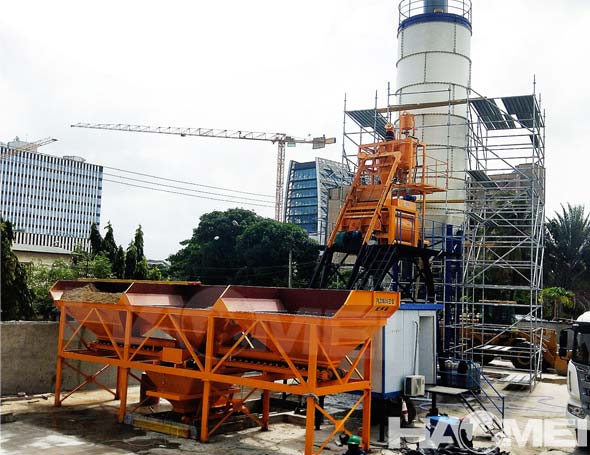

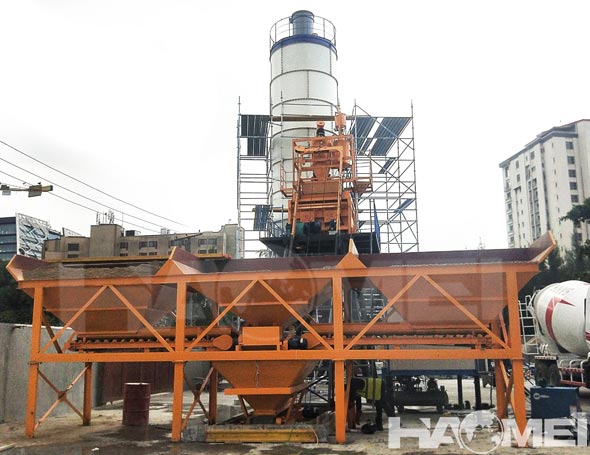

Concrete batching plant js750 is also known as HZS35 concrete batching plant, is a combination of js750 concrete mixer and a pld1200 concrete batching machine. Its concrete output is 0.75 cubic meters per batch and 35 cubic meters per hour. The concrete batching plant HZS35 adopts a combined structure and is fully automated. The total power of the equipment is 72kw. The feeding method can also be decided by the customer whether to choose lift skip hopper bucket type or the belt conveyor type.
Concrete batching plant js750 is one of the mini concrete batching plant models. HZS35 concrete batching plant adopts advanced automatic control system. HZS35 concrete batching plant is equipped with a concrete mixing host, a concrete batching machine, a weighing system, a conveying system, a cement silo, and a water supply system. Js750 double horizontal shaft forced concrete mixer is used for main machine and aggregate lifting, pld1200 concrete batching machine is used for aggregate batching, loader is used for feeding, and electronic scale is used for metering; cement is stored in cement warehouse, transported by screw conveyor, and measured by cement scale; water is stored in water tank and water reservoir, supplied by water pump, and measured by water scale. After the liquid admixture is evenly stirred in the admixture storage tank, it is sent to the admixture scale by the corrosion-resistant pump for measurement.
The concrete batching plant js750 integrates simulation technology into the concrete field, intelligent control, automatic control and manual control. The production process and situation of the concrete batching plant can be observed and counted in real time. It can provide remote communication interface to transmit the data of each workstation to the operating room, and read the production process data in real time for easy management. The transmission system uses a cycloidal ten-wheel reducer, which has low noise and is stable and reliable.
