Mobile Mini Batching Plant

 2025.01.03

Mobile mini batching plant is a kind of concrete production equipment which centralizes the material storage, weighing, conveying, mixing, discharging and full-automatic control system of the concrete batching plant with a trailer unit.





Mobile mini batching plant is mainly composed of the following parts:

- Host chassis: a cantilever-shaped mixing host chassis, the chassis contains a trailer truck towing pins, parking legs and other components. Chassis placed on the mixer, cement and water additives measuring scale, the periphery is attached to the inspection platform, railings and so on.

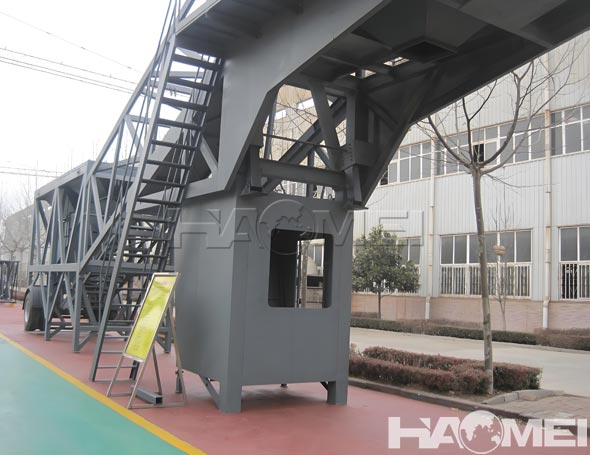

- Control room: the control room is at the bottom of the chassis of the main engine, and it is equipped with the automatic control system of the mobile concrete batching plant. The control system is the same as that of the stationary concrete batching plant. The control room serves as the front support point of the whole concrete batching plant when it is in working condition, and when it is being transferred to another site for transportation, the control room is put away and stored in the inner space of the support, and all the control lines do not need to be dismantled.

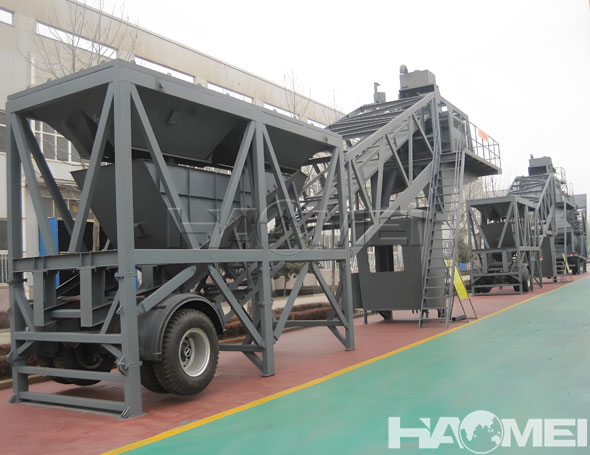

- Aggregate Batching and Measuring System: This system is located at the back end of the whole concrete batching plant, and the upper part is the aggregate (sand, stone) storage hopper, which can be divided into 2 or 4 compartments, and set up the heightening plate to increase the storage capacity. Aggregate metering for a variety of materials cumulative measurement, the bottom is equipped with a walking rear axle and working frame legs.

- Belt conveyor frame: the frame is a truss structure connecting the chassis of the main machine and the batching frame of the aggregate, and the belt conveyor frame is installed inside, so that the main machine frame, the belt conveyor frame and the batching frame are integrated to form the main structure of the whole mobile concrete batching plant.

- Peripheral parts: including cement silo and screw conveyor, these parts are integral parts no matter working or transportation, no need to disassemble, so they can be transported, disassembled and assembled as a whole.

- Mixing machine: The mixing machine is the core equipment for concrete production, usually adopting JS type forced mixer or drum mixing machine, which can quickly and uniformly mix and complete the fluidity and dry hard concrete.



The main technical parameters of mini mobile concrete batching plant include model, theoretical productivity, measurement range, machine power, machine quality, etc. Take YHZS35/50/75 model as an example, its main technical parameters are as follows:

Model

Theoretical production rate (m³/hr)

Aggregate storage silo (quantity and capacity)

Feeding height (mm)

Raw material metering accuracy (kg)

Mixer model

Output capacity (m³)

Mixing power (kw)

Total power (kw)

Total weight (t)

Unloading height (mm)

Trailing speed (km/h)

Turning radius (m)

YHZS35

35

4×8m³

7000

Aggregate 2400±2%, cement 600±1%, water 250±1%, additive 30±1%

JS750

0.75

22×2

≈82

≈28.5

≥3800

40

22

YHZS50

50

4×8m³

7000

Aggregate 2400±2%, cement 600±1%, water 250±1%, additive 30±1%

JS1000

1

22×2

≈82

≈30.5

≥3800

40

22

YHZS75

75

4×8m³

7000

Aggregate 3000±2%, cement 600±1%, water 500±1%, additive 30±1%

JS1500

1.5

30×2

≈98

≈36.5

≥3800

40

22



Features and advantages of mini mobile concrete batching plant are:

- Convenient to move: The mobile concrete batching plant is quick and easy to disassemble, and the storage and management is relatively simple, which is very suitable for the projects that need to change the construction site frequently.

- Strong applicability: the equipment is suitable for highway, railroad, bridge, harbor, hydropower station and other engineering construction, and can meet the demand for concrete in different projects.

- Comprehensive functions: the mini mobile concrete batching plant can perform all the functions of the stationary fully automatic mixing plant, such as process, operation mode and maintenance.

- Small footprint: the equipment usually adopts semi-trailer design, which has a small footprint and is convenient for transferring, and is very suitable for use in narrow space or complex terrain.



Mini mobile batching plant is very suitable for the following scenes:

- Road construction: In road construction, mobile concrete batching plant can provide timely and efficient concrete supply to meet the needs of road construction.

- Small-scale projects: For small-scale projects with short construction period, small mobile concrete batching plant can respond flexibly and reduce the construction cost.

- Remote area projects: when the construction is carried out in remote areas or places with inconvenient transportation, mobile mini concrete batching plant can reduce the transportation cost and time cost.



To summarize, mobile mini batching plant has the advantages of convenient movement, strong applicability, comprehensive functions, etc., and plays an important role in a variety of engineering construction.
